Steel Slab Storage Racks with Straps
product introduction

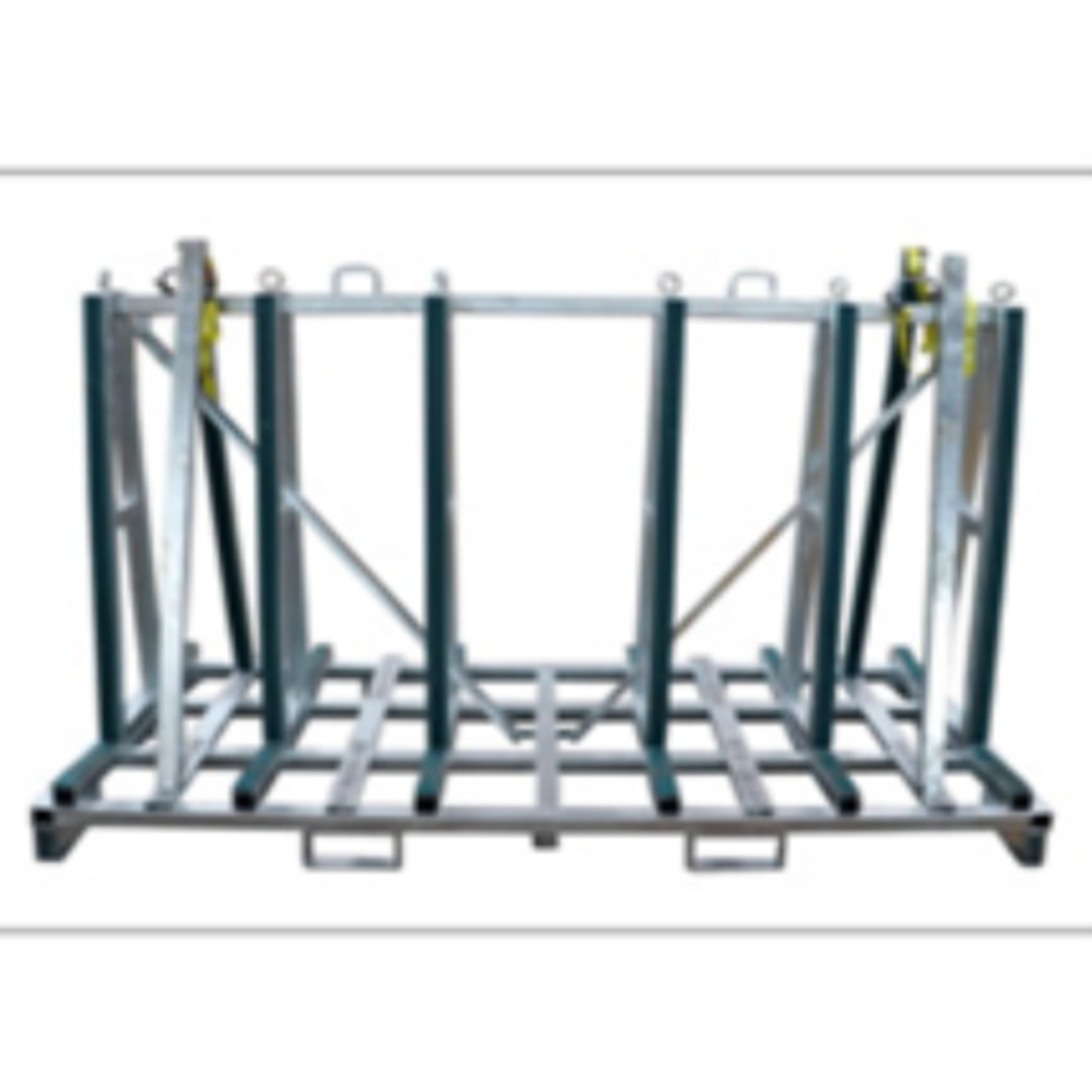

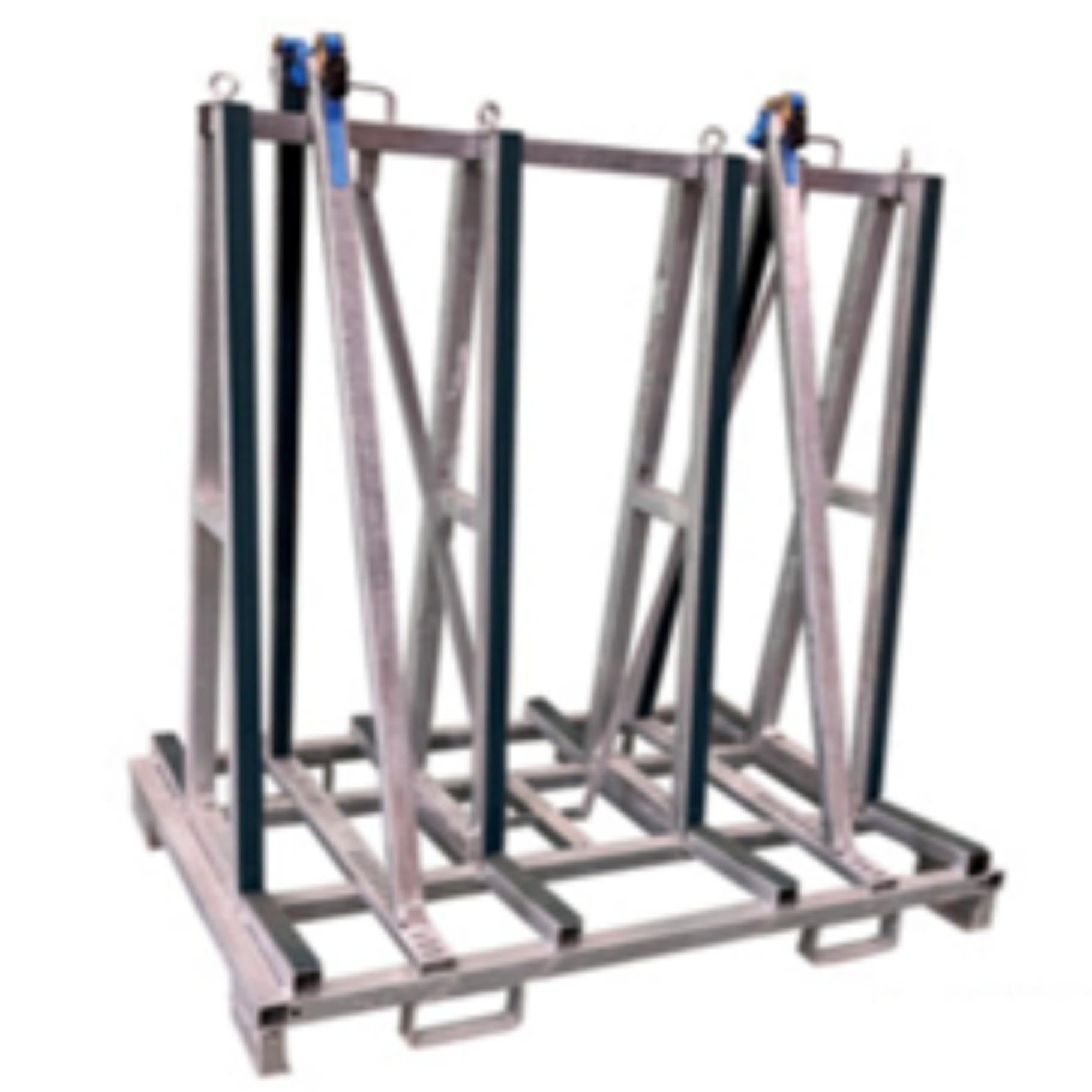

The Steel Slab Storage Racks with Straps is a specialized storage solution for industrial and construction materials. Constructed with high - quality metal, its A - frame design offers exceptional stability and strength. It features multiple securing points and straps, ensuring slabs are safely stored and transported. This rack optimizes space usage, allowing for vertical stacking of slabs. Its user - friendly design simplifies loading and unloading, enhancing operational efficiency in warehouses and construction sites.
product advantage
• High Load - Bearing Capacity: Constructed from premium steel, these racks can support heavy slabs, ensuring reliable performance in industrial settings.
• Enhanced Security: The integrated straps provide an additional safeguard, preventing slabs from shifting or falling, thus reducing the risk of damage and ensuring safety.
• Sturdy Structure: The robust framework with multiple vertical supports and cross - bracing offers excellent stability, maintaining integrity even under heavy loads.
• Space - Saving Design: Their compact layout optimizes storage space, allowing for efficient organization of slabs in warehouses or manufacturing facilities.
• Durability: The steel construction and protective finish resist corrosion and wear, ensuring a long service life in various environmental conditions.
technical data
| MODEL | DIMENSIONS(LxWxH) | PACK SIZE(LxWxH) | SLAB PLACED WIDTH | SLAB PLACED HEIGHT | LOAD CAPACITY | NET WEIGHT |
| XGM-ASR4A | 2800×1100×2150mm | 2800×1100×350mm | 290mm Each Side | 1950mm | 3T | 225Kg |
| XGM-ASR4B | 2800×1100×1650mm | 2800×1100×350mm | 315mm Each Side | 1450mm | 3T | 200Kg |
| XGM-ASR4C | 2200×1100×1650mm | 2200×1100×350mm | 315mm Each Side | 1450mm | 3T | 190Kg |
| XGM-ASR4D | 2200×1100×1350mm | 2200×1100×350mm | 340mm Each Side | 1150mm | 3T | 170Kg |
| XGM-ASR4E | 1500×1100×1650mm |
1500×1100×300mm | 315mm Each Side | 1450mm | 2.7T | 142Kg |
| XGM-ASR4F | 1500×1100×1350mm | 1500×1100×350mm | 340mm Each Side | 1150mm | 2.7T | 130Kg |
PACKAGING & SHIPPING
• For urgent orders with lighter weight or samples, we recommend using express delivery.
• For regular orders weighing over 45kgs, air cargo is recommended.
• For large diameter saw blades or heavy items, shipping by sea is recommended.
Xingong will provide recommendations based on the specific requirements of each order.
