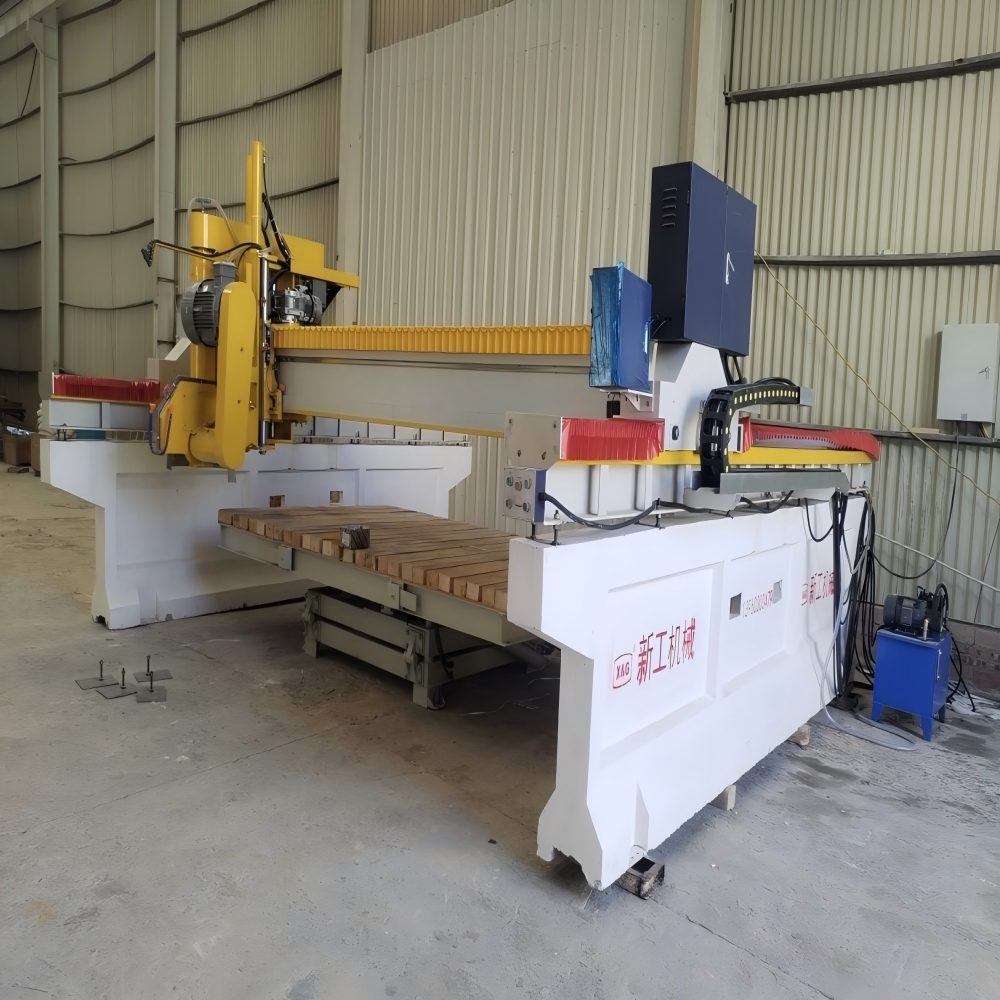

Slab Bottom Cutting Machine
product video
product introduction
The slab bottom cutting machine is specifically engineered for post-processing operations after primary stone cutting. It precisely trims and levels the base plate (or bottom slab) of cut stone blocks, effectively converting residual offcuts and irregular surfaces into standardized, reusable materials. This process not only maximizes material utilization and significantly reduces waste generation, but also lowers raw material costs by reclaiming value from what would otherwise be discarded. Equipped with advanced cutting technology and high-precision leveling mechanisms, the machine ensures smooth, flat surfaces with consistent thickness, making the recycled slabs suitable for a variety of secondary applications such as tiles, countertops, and decorative pieces. Ultimately, the machine embodies a sustainable manufacturing approach—combining operational efficiency with environmental responsibility, helping customers achieve both economic savings and resource conservation goals.
product advantage
• Sturdy & Durable – Heavy-duty cast structure provides high strength and stability, capable of handling large processing forces and heavy loads.
• High Precision – Advanced programming technology and specialized diamond saw blades ensure excellent cutting quality and accuracy.
• Easy Operation – Intuitive human-machine interface enables fast setup and efficient operation, boosting production throughput.
• Wide Application – Versatile for processing various stones, including marble, granite, limestone, etc., to suit different customer requirements.
• Easy Maintenance – Modular design allows quick component replacement, minimizes downtime, and improves overall efficiency.
technical data
| Model | Slab Bottom Cutting Machine |
| Overall Dimension(L*W*H) | 5800 * 5700 * 2500mm |
| Blade Dimension | 500mm |
| Maximum Working Size | 3600 * 2200 * 120mm |
| Table Size | 3600 * 2200mm |
| Angle of Table Tilting | 0-85 degrees |
| Angle of Table Ratation | 0-90 degrees |
| Main Motor Power | 22kW and 18.5kw |
| Total Power | 48.5kW |
