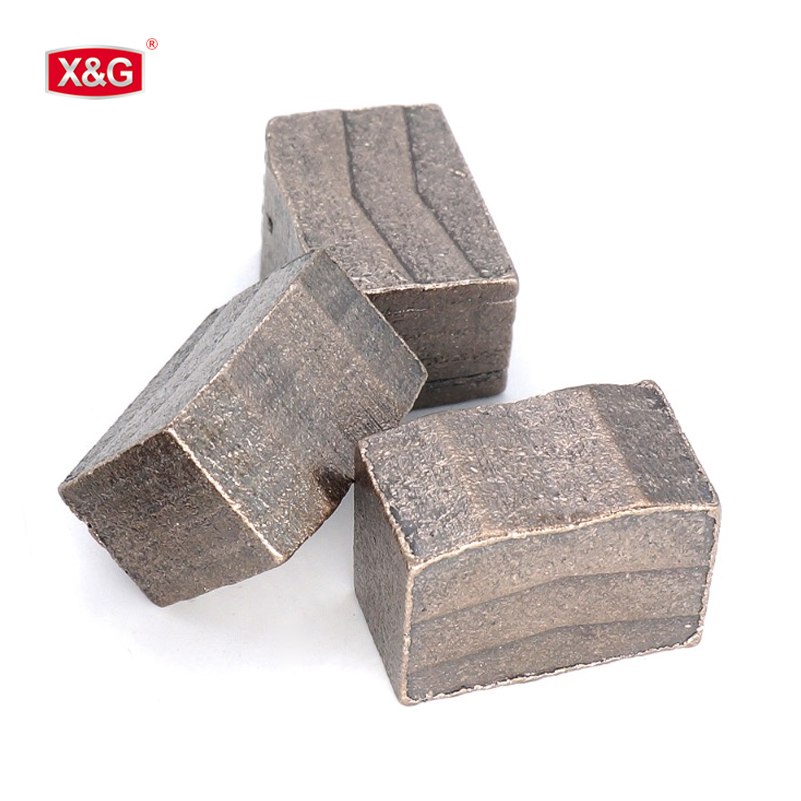

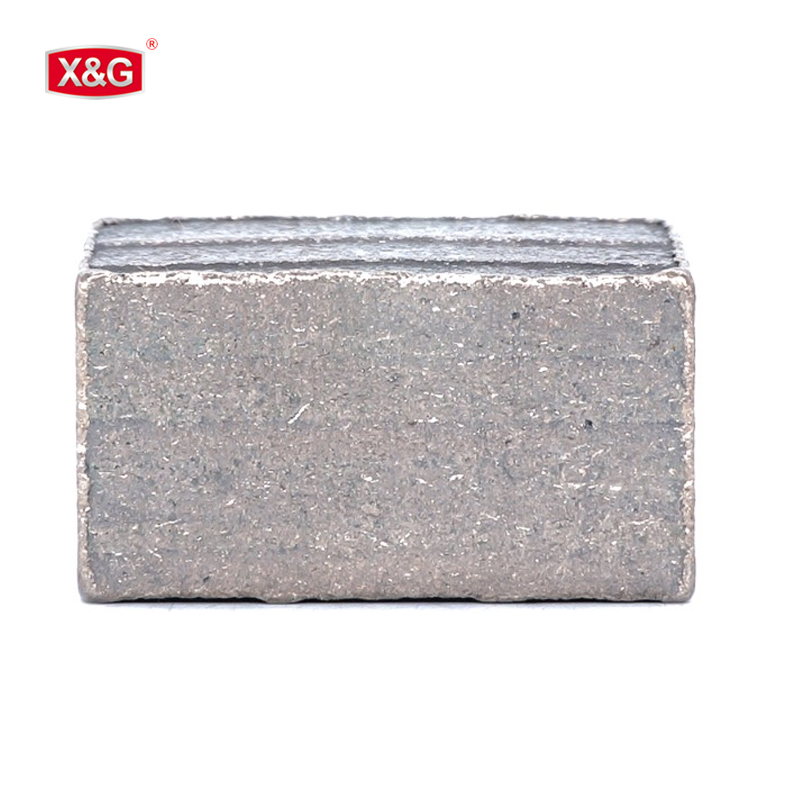

Quaryy Segment
product introduction
Xingong Diamond Segments for Quarry Stone are renowned for their exceptional performance in the domestic stone mining market. These segments are widely used in almost all stone mines across China due to their outstanding sharpness, long lifespan, and cost-effectiveness.
product advantage
• High Market Share: Dominates the domestic stone mining market with extensive use in various stone mines in China.
• Outstanding Sharpness: Provides excellent cutting efficiency and precision, ensuring smooth and effective quarrying operations.
• Long Lifespan: Designed for durability, offering a longer operational life compared to other segments. Reducing the times of blanks re-welding, maximizing the lifespan of steel blanks, achieving high cutting linear meters and eventually saving the mining cost for the quarry mining owners.
• Cost-Effective: Offers a better price-to-performance ratio than similar products from other suppliers, making it a preferred choice for stone quarrying.
technical data
There are 4 main Double-blades-Combinations: D2200/D3300, D2200/D3600, D2400/D3300, D2400/D3600 Detailed Parameters
| Blank thickness (MM) | Blanks Diameter (MM) | Blanks tips (PCS) | Segment Size (MM) |
| 9.5/10.0 | 2200 | 132 | 23*14/13*15 |
| 9.5/10.0 | 2400 | 136 | 23*14/13*15 |
| 9.5/10.0 | 3300 | 170 | 23*12.5/11.5*15 |
| 9.5/10.0 | 3600 | 180 | 23*12.5/11.5*15 |
There are 3 main Triple -Blade-Combinations: D2600/D3600/D4200, D2600/D3800/D4600, D2600/D3800/D4800 Detailed Parameters:
| Blank thickness (MM) | Blanks Diameter (MM) | Blanks tips (PCS) | Segment Size (MM) |
| 12 | 2600 | 142 | 23*16/15*15 |
| 12 | 3600 | 180 | 23*15/14*15 |
| 12 | 4200 | 210 | 23*14/13*15 |
| Blank thickness (MM) | Blanks Diameter (MM) | Blanks tips (PCS) | Segment Size (MM) |
| 12 | 2600 | 154 | 23*16/15*15 |
| 12 | 3800 | 190 | 23*15/14*15 |
| 12 | 4600 | 230 | 23*14/13*15 |
| Blank thickness (MM) | Blanks Diameter (MM) | Blanks tips (PCS) | Segment Size (MM) |
| 12 | 2600 | 180 | 23*16/15*15 |
| 12 | 3800 | 190 | 23*15/14*15 |
| 12 | 4800 | 240 | 23*14/13*15 |
Performance of Xingong Stone Quarrying Segments
Xingong Quarrying Segment is suitable for granite, marble basalt, slate, sandstone quarrying. It is quite famous by the quarrying workers, thanks to its speedy, deep and long life cutting.
| Material To Cut | Stone Hardness | Feeding Speed | Lifespan (M) | Blade Combination | |||
| (CM) | 0-70 Stroke | 0-110 Stroke | Smaller Blade | Bigger Blade | |||
| G.Tiangan White | Hard | 12 | 20-25 | 45-50 | 400 | 450 | D2400/D3300 |
| G.623 | Medium Hard | 12-15 | 30 | 60-75 | 550 | 950 | D2400/D3300 |
| G.654 | Soft | 20 | 30 | 70-80 | 1000 | 1300 | D2400/D3300 |
PACKAGING & SHIPPING
• For urgent orders with lighter weight or samples, we recommend using express delivery.
• For regular orders weighing over 45kgs, air cargo is recommended.
• For large diameter saw blades or heavy items, shipping by sea is recommended.
Xingong will provide recommendations based on the specific requirements of each order.
