Key Takeaways
- The fastest way to get more space out of a slab yard is not to buy more racks — it is to organize the racks you have like a warehouse: slot by movement velocity and shrink the aisles.
- Aisles typically eat 40–60% of yard floor space, so narrowing a 4.0 m forklift aisle to a 2.5 m slab-cart aisle is the single cheapest density gain available.
- Double-sided racks placed back to back share one aisle and one back clearance, lifting density by roughly 40–60% over single-sided racks.
- In a 2026 reorganization of a 1,200 m² yard, five-zone ABC slotting plus double-sided racks raised capacity from 1,100 to 1,800 slabs, cut retrieval time from 11.0 to 6.5 minutes, and freed 160 m².
- Zone by velocity first, then by size — color is a label, not a location, so the same color with different turnover belongs in different zones.
Stone slab yard organization is the discipline of arranging Slab Racks, aisles, and staging areas so that fast-moving stone sits closest to the cutting line and every square meter of floor earns its keep — and the proven way to do it is to treat the yard like a distribution warehouse. Warehouses have spent decades perfecting slotting, aisle geometry, and zoning; a slab yard that borrows those rules typically stores more slabs in less space and retrieves them faster without buying a single new rack. Because a double-sided rack on a 2.5 m cart aisle stores roughly 4.7 slabs per square meter versus about 2.4 for a single-sided rack on a 4.0 m forklift aisle, the difference between an organized yard and a crowded one is often a full doubling of usable capacity.
This article explains the five-zone model, the density math, the aisle decision, and seven slotting rules — and it ends with the measured before-and-after of a real 1,200 m² yard. If you already know which racks to buy, our rack selection guide and capacity and standards guide cover the hardware; this one covers the layout.
Why Yard Organization Is a Space Problem, Not a Rack Problem
Most "full" slab yards are not full of slabs — they are full of aisles, empty reach room, and racks holding stone nobody has touched for six months. The math is simple: storage density is slabs per square meter, and every aisle, every dead corner, and every mis-slotted slab drags that number down. Because the cost of extra floor space (rent, concrete, lighting, travel time) keeps compounding, the cheapest way to add capacity is to make the existing floor store more — and that is a layout decision, not a purchase decision.
An organized yard moves material in one direction along this path. A disorganized yard doubles back on itself, which is how retrieval time and damage both climb.
The 5-Zone Yard Model: ABC Slotting for Stone
Divide the yard into five zones by how often stone moves, then place the fastest stock closest to where it is consumed — exactly the ABC slotting principle the Material Handling Industry (MHI) has documented for decades for distribution-warehouse SKUs. The five zones, in material-flow order:
| Zone | What lives here | Where it goes |
|---|---|---|
| Inbound staging | New slabs from trucks, still bundled or uncrated | Nearest the loading door, on the yard edge |
| Zone A — fast movers | Colors and sizes you cut every week | Closest to the cutting & polishing line |
| Zone B — project stock | Slabs reserved for active projects, moved monthly | Mid-yard, one aisle away from Zone A |
| Zone C — archival stock | Rare colors, discontinued stock, long-tail inventory | Back of the yard, furthest from the saw |
| Outbound staging | Cut, polished, and packed finished pieces | Nearest the shipping door |
Because most slab yards we audit store stock in the order it arrived, not the order it moves, the same worker who needs the weekly best-seller walks past six months of dead stock every single time — and that repeated walking is pure lost capacity. Moving the 20% of slabs that drive 80% of the cutting work into Zone A is the highest-leverage change in this entire article.
How to Calculate Your Yard's Storage Density
Storage density is slabs per square meter, and it is the single number that tells you whether your yard is organized or just crowded. The formula is simple — slabs stored divided by the floor area the rack and its aisle occupy together — and the two levers that move it are rack geometry (single vs double-sided) and aisle width.
Storage Density Calculator
Single-sided: slabs ÷ (depth × width + aisle × width). Double-sided: 2 × slabs ÷ (back-to-back depth × width + aisle × width), where back-to-back depth ≈ 3.9 m for two 2.4 m A-frames. Works without JavaScript — compute on paper.
| Configuration | Aisle | Density |
|---|---|---|
| Single-sided | 4.0 m (forklift) | ≈ 2.4 slabs/m² |
| Double-sided | 4.0 m (forklift) | ≈ 3.8 slabs/m² |
| Double-sided | 2.5 m (slab cart) | ≈ 4.7 slabs/m² |
Because the double-sided rack and the narrow cart aisle compound rather than add, the full upgrade — double-sided racks on 2.5 m cart aisles — stores roughly twice as much per square meter as single-sided racks on 4.0 m forklift aisles. That is the difference between renting a second yard and staying in the one you have.
Aisle Geometry: The Biggest Hidden Space Consumer
Aisles are the single largest, and most overlooked, consumer of yard space — typically 40–60% of the floor — so the width you choose for every aisle is the highest-leverage density decision you will make. The right width is set by your handling equipment, not by habit:
| Handling method | Typical aisle | Space impact |
|---|---|---|
| Forklift (front-loading) | 3.5–4.0 m | Highest space cost — needs turning room |
| Gantry / overhead crane | 2.5–3.0 m | Moderate — no turning radius needed |
| Slab transfer cart | 2.0–2.5 m | Lowest — runs on a fixed lane |
Because a slab cart runs on a fixed 2.0–2.5 m lane instead of swinging a forklift through a 4.0 m aisle, pairing your racks with a slab transfer cart recovers a third or more of your aisle space — which is why rack layout and transport choice are the same decision. Our battery powered slab transport guide cover the cart half of that equation.
Whatever aisle width you choose, keep rack placement and anchoring aligned with RMI MH16.1 guidance — a layout that maximizes density is only good if every rack stays put under a nudge.
The 7 Slotting Rules for Slab Yards
These seven rules are the operating system for the five-zone model — apply them in order and the yard mostly organizes itself.
- Slot by velocity first, size second, color never: how often a slab moves decides its zone; its size decides its rack; its color is only a label.
- Keep Zone A within one turn of the saw: if the fastest stock is more than one aisle-turn from the cutting line, the layout is wrong regardless of density.
- Never store a slab on the floor or leaning against a rack: floor stock is unreachable, unlabeled, and the top cause of edge damage and trip hazards.
- Label every slot with size, color, and date-in: a slot with no label costs 5–10 minutes of searching later and forces double-handling now.
- Leave one empty face in every zone: a planned empty rack face is staging for incoming stock; without it, inbound slabs pile in the aisle.
- Separate pedestrian walkways from cart and forklift lanes: painted floor lines are nearly free and are the cheapest safety and speed improvement in the yard — OSHA's warehousing guidance treats clear, separated aisles as a core safety control.
- Re-slot quarterly, not annually: turnover changes with seasons and contracts; a zone map that was right in March is wrong by September.
5 Yard Organization Mistakes to Avoid
Most yard problems trace back to five avoidable habits, and removing each of them costs nothing.
- Storing by arrival order instead of velocity: the oldest stock blocks the busiest stock, so every fast job pays the travel cost of the slowest slab.
- Using forklift aisles everywhere out of habit: reserving 4.0 m of aisle for lanes a 2.5 m cart could serve is the most common way to waste a third of a yard.
- Stacking slabs on the floor or leaning them against racks: floor stock is invisible to inventory, impossible to retrieve cleanly, and the leading cause of edge chips.
- Leaving slots unlabeled: an unlabeled rack forces a 5–10 minute search per slab and guarantees double-handling of the neighbors.
- Sharing one aisle between people and machines: mixing pedestrians with cart and forklift traffic slows everything and invites struck-by incidents.
Before & After: A 1,200 m² Yard Reorganization
Between April and June 2026, we reorganized a 1,200 m² stone slab yard using exactly the method above — five-zone slotting, double-sided racks, and 2.5 m cart aisles — and measured the result before and after. The yard bought no additional racks; it only rearranged the ones it had and switched aisle traffic from forklift to cart.
Before
slabs stored (22 single-sided racks)
slabs per m² · 4.0 m forklift aisles
minutes average retrieval
After
slabs stored (18 double-sided units)
slabs per m² · 2.5 m cart aisles
minutes average retrieval
| Metric | Before | After | Change |
|---|---|---|---|
| Storage capacity | 1,100 slabs | 1,800 slabs | +64% |
| Storage density | ≈ 1.4 slabs/m² | ≈ 2.9 slabs/m² | +107% |
| Average retrieval time | 11.0 min | 6.5 min | −41% |
| Floor area freed | — | 160 m² | new polishing bay |
Because the reorganized yard stored more slabs in less space while cutting retrieval time nearly in half, the freed 160 m² paid for the reorganization on its own — that space became a new polishing bay with zero additional rent. The full metric set is published as a dataset so any factory can benchmark its own yard against it.
Reading the numbers: the “before” yard's 1.4 slabs/m² was well below the 2.4 theoretical maximum for single-sided racks, because stock was mixed and mis-slotted — that gap is precisely the waste the reorganization recovered. The “after” 2.9 slabs/m² is a whole-yard figure that includes staging zones and the main aisle, which is why it is lower than the rack-only density in Table 2.
Honest limitation: this is one yard, one slab mix, and one point in time. Your density and retrieval gains depend on your slab sizes, turnover pattern, and equipment. Use the numbers as a benchmark and the method as a template — then measure your own yard before and after, because the before number is what makes the after number believable.
Zone Planning Worksheet
Draw your yard, then fill in this worksheet zone by zone — the numbers it produces are your reorganization plan.
| Zone | Slab families (size / color) | Est. slabs | Distance to saw |
|---|---|---|---|
| Inbound staging | — | ||
| Zone A (fast) | ≤ 1 turn | ||
| Zone B (project) | 1–2 turns | ||
| Zone C (archival) | back of yard | ||
| Outbound staging | — |
Your First Week: A Reorganization Roadmap
- Measure the before: count slabs, sketch the current zones, and time 10 retrievals — the baseline is what proves the gain.
- Classify the stock: split slabs into A, B, and C by the last 90 days of movement, not by color.
- Redraw the yard: sketch the five zones and the flow path, and pick the aisle width your equipment actually needs.
- Move in one weekend: relocate racks zone by zone, label every slot, and paint the walkways.
- Measure the after: re-time the retrievals and recompute density, then re-slot quarterly as turnover shifts.
FAQ: Organizing a Slab Yard
What is the best way to organize a stone slab yard?
Treat it like a warehouse: split the yard into five zones — inbound staging, fast movers near the cutting line, project stock, archival stock at the back, and outbound staging. Slot slabs by movement velocity, use double-sided racks back to back, and size aisles to your actual handling equipment instead of defaulting to a forklift.
How much space do slab rack aisles waste?
Aisles are usually the biggest consumer of yard space, often 40 to 60 percent of the floor. A forklift needs 3.5–4.0 m, a gantry needs 2.5–3.0 m, and a slab cart needs 2.0–2.5 m. Narrowing the aisle by choosing the right equipment is the cheapest density gain available.
What is ABC slotting for slab racks?
ABC slotting groups slabs by movement velocity. A-slabs are the weekly colors, stored closest to the cutting line; B-slabs are monthly project stock; C-slabs are archival stock at the back. Storing fast movers nearest to where they are used cuts walking and retrieval time, just like in a distribution warehouse.
Do double-sided slab racks really save space?
Yes. Two A-frame racks back to back share one aisle and one back clearance, raising density by roughly 40–60% over two single-sided racks on their own aisles. Combined with a switch from a 4.0 m forklift aisle to a 2.5 m cart aisle, density can nearly double.
How many slabs can I store per square meter?
As a rough rule, a single-sided A-frame rack on a 4.0 m forklift aisle stores about 2.4 slabs/m², while a double-sided rack on a 2.5 m cart aisle stores about 4.7 slabs/m². Your number depends on slab size, rack angle, and aisle width — use the density calculator in this article.
Should I zone the yard by slab color or by slab size?
Zone first by movement velocity (ABC), then by size within each zone. Velocity decides where a slab lives; size decides which rack it fits. Color is a label, not a location — two identical colors with different turnover should live in different zones.
Racks for a Properly Organized Yard

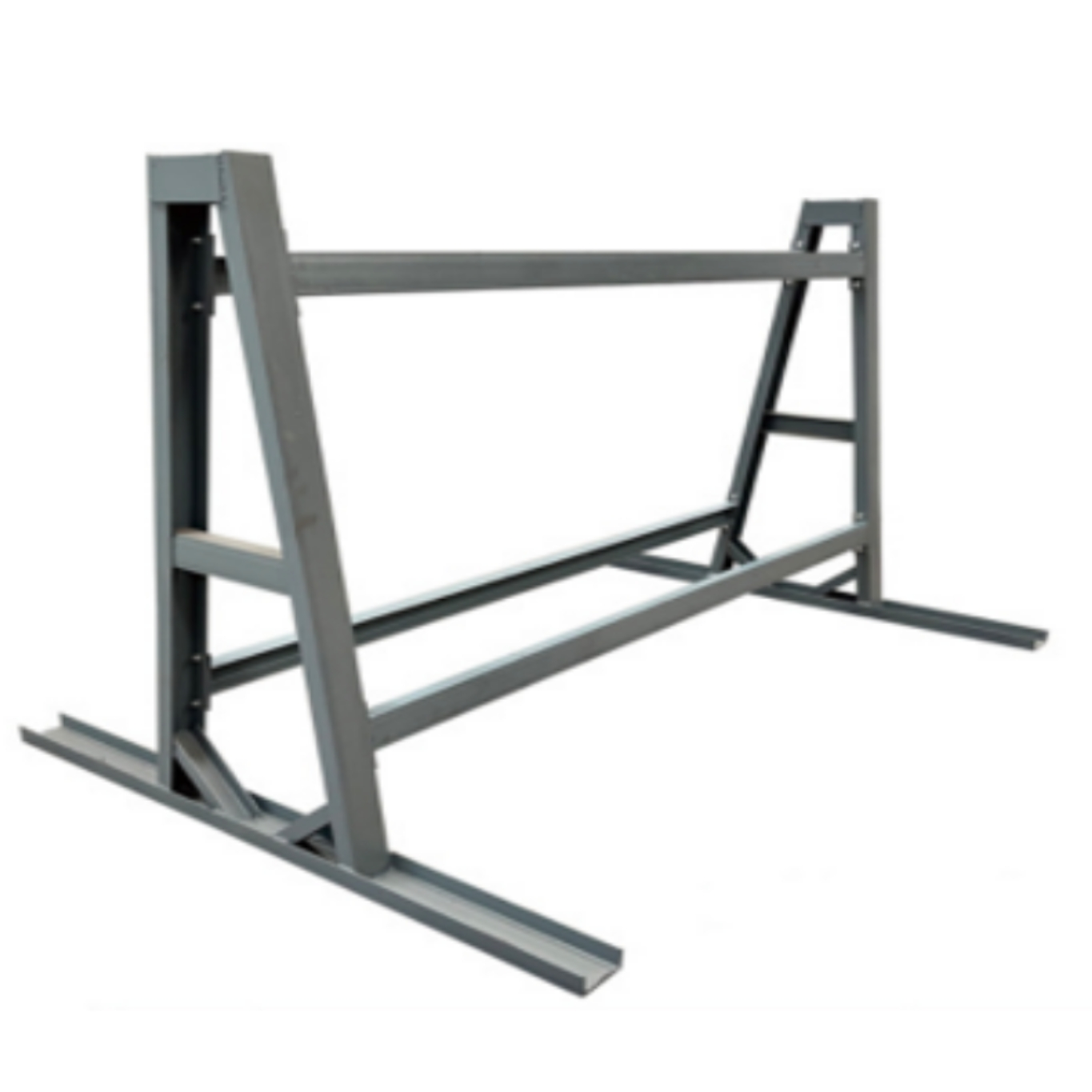

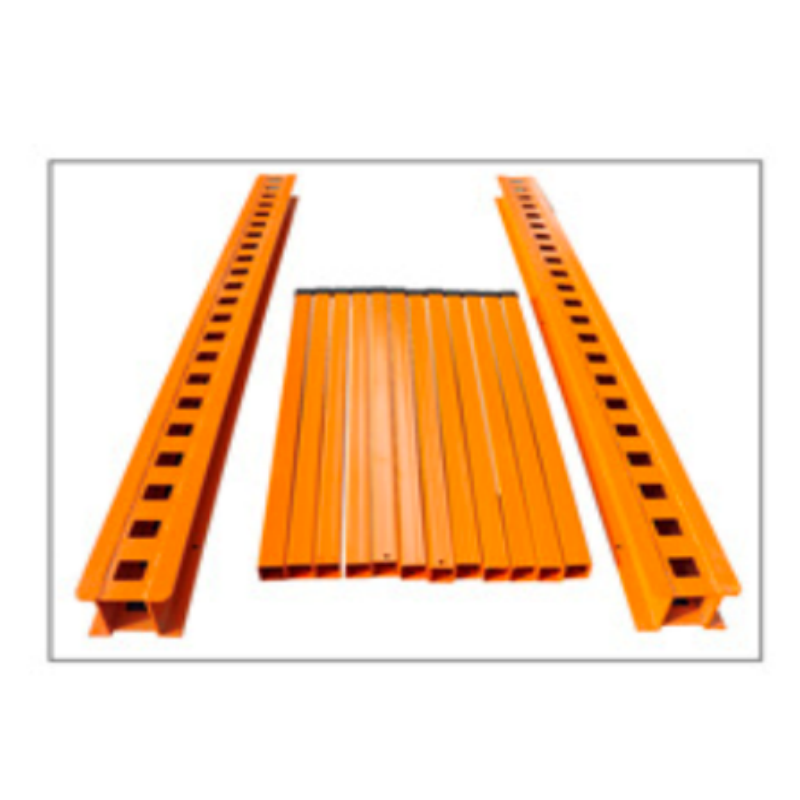

The layout method above works with the right rack geometry. For high-density Zone A and B, the grey A-frame slab rack and orange stone slab rack give the 70° rest angle that maximizes density; for heavy granite and engineered-stone stock, use the heavy-type slab rack. Start with the general slab storage rack, browse the full handling equipment lineup for the carts that narrow your aisles, or send us your floor plan — we will draw the five-zone layout and run the density math with you for free.
