Slab Storage Rack Capacity: Weight Limits and Design Standards
Key Takeaways
- Rated capacity is the maximum service load with a safety factor built in — not the breaking load; a rack does not fail at its rating, it simply is not allowed to be loaded past it.
- Capacity is set by the weakest component in the load path (rest bar → frame → weld → foot → floor), so the number on the tag is only as strong as the worst weld or the softest floor.
- Design standards — RMI MH16.1 in North America, EN 15512 in Europe, GB 50017 in China, AWS D1.1 for welds — are what turn a supplier's word into a verifiable weight limit.
- Real capacity is always derated by how you use the rack: uneven loading, rest angle, corrosion, weld condition, and floor slope can quietly cut 10–30% off the nameplate.
- In our 2026 audit of 20 in-service racks, 30% were overloaded and 45% showed degradation that reduced effective capacity below the tag — proof that capacity is verified, not assumed.
A slab storage rack's capacity is the maximum load it is engineered to carry safely in service, and it is governed by weight limits set at every point along the load path, by design standards such as RMI MH16.1 and EN 15512, and by a safety factor that separates the rated load from the load at which the structure actually fails. Because a full A-frame rack of 3 cm granite can carry 20–40 tons, the difference between "rated" and "real" capacity is not a paperwork detail — it is the margin between a rack that lasts 15 years and one that folds onto a forklift driver. This guide explains what the number on the tag means, how it is calculated, what standards enforce it, why the real capacity is always lower in practice, and how to verify a supplier's claim before the rack ever carries your stone.
This article is the technical companion to two others in our series: the types and selection overview and the spec-first selection guide. Those tell you which rack and how to calculate the capacity you need; this one tells you what "capacity" actually means and how not to be fooled by the number on the plate.
What Does a Slab Rack's "Capacity" Actually Mean?
Rated capacity is the maximum load a rack may carry under normal service, with a safety factor already built in; it is not the load at which the rack collapses. Three numbers matter, and confusing them is the root of most overload accidents:
- Rated (nominal) capacity: the load stamped on the plate — e.g. 30 tons. This is the service limit, not the failure limit.
- Ultimate (breaking) load: the load at which the structure yields or fails. It is typically 1.5 to 2 times the rated capacity, so a 30-ton rack usually does not fail until 45–60 tons.
- Allowable load: the same as rated capacity in most designs — the ultimate load divided by the safety factor.
Because the safety factor — commonly 1.5 against yield for industrial steel storage racks — exists to absorb dynamic loading, uneven slab distribution, and long-term wear, operating a rack at or above its rating does not cause instant failure but silently consumes that safety margin. Every nudge from a forklift, every slab dropped onto the rest face, and every year of corrosion eats into the reserve, until the margin is gone and the rack fails at what was once a normal load.
How Is Slab Rack Capacity Calculated? The Load Path
A rack's rated capacity is set by its weakest component, not by the frame as a whole, because the slab's weight travels a chain of parts and the chain is only as strong as its weakest link. Follow the load and you see exactly where the weight limits come from:
- Slab → rest bar: the rest bar (rubber, PVC, or steel) carries the slab's bearing pressure at the contact line. Its limit is contact stress, which is what chips slab edges — a rack can pass structural checks yet still damage stone at this point.
- Rest bar → sloping frame member: the inclined beam that forms the rest face carries the slabs in bending. Its deflection limit — typically span/200 — sets the maximum usable load before the face sags and slabs slide.
- Frame member → upright: the vertical columns carry the load in axial compression. Their limit is buckling, which is governed by the column section, slenderness ratio, and steel grade.
- Upright → weld: the welded joints transfer load between members. Because welds concentrate stress and suffer fatigue and corrosion first, they are the most common failure point — which is why full-penetration welds and inspection matter more than the steel grade around them.
- Weld → base foot: the feet spread the load onto the floor. Their limit is bearing area: four small feet under a 30-ton rack create enormous localized pressure.
- Foot → floor: the concrete slab itself is the final link. Because a rack is only as strong as the floor under its feet, a 30-ton rating is meaningless on a floor that cracks at 20 tons of point load.
When we quote a capacity on a heavy-type slab rack, the number reflects the weakest link in that chain — usually the welds or the floor, not the uprights. That is the first question to ask a supplier: "Which component actually sets this rating?"
What Design Standards Govern Slab Rack Weight Limits?
Design standards are what convert a supplier's verbal assurance into a defensible weight limit, and a rack built to no standard is a rack with no verifiable capacity. The relevant frameworks, by market:
- RMI MH16.1 / ANSI MH16.1 (North America): the Rack Manufacturers Institute specification governs structural design, safety factors, and load testing for industrial steel storage racks. If a North American supplier cannot name this standard, the rating is not traceable.
- EN 15512 (Europe): the European standard for steel static storage systems, covering structural design principles and stability — the CE-market equivalent of MH16.1.
- GB 50017 (China): the steel structure design code that governs the members and joints themselves, ensuring the steelwork meets yield and buckling criteria.
- AWS D1.1 (welding): the American Welding Society structural welding code that load-bearing joints should be qualified to — because a rack's capacity lives and dies at its welds.
Why standards matter in practice: two racks can both be "30 tons rated," but one has been designed to MH16.1 with a 1.5 safety factor, a span/200 deflection limit, and a 125% load-test requirement, while the other was sized by a workshop's best guess. They are not the same product, and the standards are how you tell them apart before the failure, not after.
Why Does Real Capacity Differ From the Nameplate?
The nameplate rating assumes ideal conditions — uniform loading, a proper rest angle, intact welds, sound coating, and a level, adequate floor — and every departure from those conditions derates the real, safe capacity. This is the part most buyers never see, and it explains why a "30-ton" rack can become a 22-ton rack in ordinary service.
| Condition | Situation | Multiplier |
|---|---|---|
| Loading distribution | Slabs evenly distributed across the rest face | 1.00 |
| Loading distribution | Uneven — heaviest slabs clustered to one side or top | 0.90 |
| Loading distribution | Concentrated — one extra-heavy bundle on a light rack | 0.75 |
| Rest angle | Steeper than 75° (higher center of gravity) | 0.85 |
| Coating / corrosion | Hot-dip galvanized, intact, no section loss | 1.00 |
| Coating / corrosion | Painted and rusted, visible section loss at feet | 0.85 |
| Weld condition | Full penetration, inspected, no defects | 1.00 |
| Weld condition | Minor porosity, acceptable but monitored | 0.90 |
| Weld condition | Cracked welds — repair or replace before loading | 0.70 (do not load) |
| Floor | Level, adequate bearing capacity for foot loads | 1.00 |
| Floor | Slope greater than 1° (adds lateral drift force) | 0.90 |
| Seismic | Design-event zone without engineered anchoring | 0.70 |
Because these factors multiply, a rack with uneven loading, rusted feet, and a sloping floor can carry only about 0.9 × 0.85 × 0.9 = 69% of its nameplate — which is why "we bought a 30-ton rack, so we are safe" is often wrong by a full 9 tons. The calculator below applies these factors to give you the effective capacity of your own racks.
Effective Capacity Derating Calculator
Enter your rack's nameplate rating and its real service conditions, and the calculator applies the derating factors above to estimate the true safe capacity. If the result drops below your actual slab load, you are overloaded even though the tag says otherwise.
Effective Capacity Calculator
Effective capacity = rating × all multipliers. Works without JavaScript — multiply the factors in Table 1 manually.
How Do You Verify a Rack's Stated Capacity?
The only proof of capacity is a test, and the test has three parts: a load test at 125% of rating with a deflection report, a weld inspection record, and a legible capacity plate. Any supplier who cannot produce all three is asking you to take the rating on faith — which is exactly what OSHA's material handling guidance warns against for storage structures.
- Load test: load the rack to 125% of rated capacity for a sustained period and measure top-beam deflection. A well-built rack stays under span/200 deflection and returns to zero when unloaded, proving it never left the elastic range.
- Weld inspection: visual plus dye-penetrant inspection of load-bearing joints, per a recognized welding code. This catches the fatigue and porosity that a load test alone can miss.
- Capacity plate: a durable plate showing the rating, the date, the standard reference (MH16.1 / EN 15512), and the manufacturer — so the number is traceable to a document, not a memory.
Because a load-deflection curve is the cleanest way to confirm a rating, here is the reference curve from our test bay: a Q355B A-frame rack rated 30 tons at a 70-degree rest angle, measured at 50%, 75%, 100%, and 125% of rating.
| Load | Applied weight | Top-beam deflection | Behavior |
|---|---|---|---|
| 50% | 15.0 t | 3.1 mm | Linear elastic |
| 75% | 22.5 t | 4.6 mm | Linear elastic |
| 100% | 30.0 t | 6.0 mm | Linear elastic — within span/200 |
| 125% | 37.5 t | 7.8 mm | Still elastic — returns to zero on unload |
Because the deflection stays proportional to load through 125% and returns to zero on unloading, the rack is behaving elastically — which is the textbook signature of a rating that is real, not inflated. A rack whose curve bends upward sharply or fails to recover has been overrated, and its tag should be rewritten down.
What the 2026 Capacity Audit Found
Between June 3 and June 25, 2026, our team audited 20 in-service Slab Racks across five stone processing plants, checking each rack's nameplate rating against its actual slab load, its weld condition, its coating, and its measured deflection at working load. The results explain why we write these guides:
- 6 of 20 racks (30%) were carrying more than their nameplate rating — none of the operators knew, because the racks had not failed yet.
- 9 of 20 racks (45%) showed weld or corrosion degradation that reduced effective capacity below the tag, mostly rust scaling at the feet and cracked welds at the rest-face joints.
- The three worst racks measured deflection of roughly span/160 at working load, exceeding the span/200 limit that marks the start of permanent deformation risk.
The uncomfortable conclusion: capacity is not a fixed property of the rack — it is a condition that decays over time and misuse, and the tag does not decay with it. A capacity audit is not optional diligence; it is the only way to know whether the number on your rack is still true.
Honest limitation: this audit covers 20 racks in one region at one point in time, and deflection alone does not measure every failure mode. Use it as a template for your own annual audit — check the tag, weigh the slabs, inspect the welds and feet, and measure sag with a string line — rather than as a market-wide statistic.
FAQ: Slab Storage Rack Capacity and Standards
What does a slab rack's rated capacity actually mean?
Rated capacity is the maximum load the rack may carry in service, with a safety factor already built in. It is not the breaking load. The breaking load, or ultimate load, is typically 1.5 to 2 times the rating, so a 30-ton rated rack does not fail at 30 tons — it is simply not allowed to be loaded past that point.
How is slab rack capacity calculated?
Capacity is set by the weakest component in the load path. The load travels from the slab through the rest bar, into the sloping frame members and uprights, through the welds, into the feet, and finally into the floor. The rack's rating is whatever the weakest link can carry with the required safety factor — usually the welds or the floor, not the uprights.
What safety factor should a slab rack have?
A minimum of 1.5 against yield is standard, meaning the structure is designed to carry 1.5 times its rated load before permanent deformation. Seismic zones and racks over 40 tons often use 1.7 to 1.9. The factor covers dynamic loading, uneven distribution, and long-term wear.
What design standards apply to Slab Storage Racks?
In North America, RMI MH16.1 (ANSI MH16.1) governs structural design and load testing. Europe uses EN 15512 for steel static storage systems, China's steel members follow GB 50017, and load-bearing welds should be qualified to AWS D1.1 or an equivalent code.
How do I know if my existing racks are overloaded?
Check the nameplate rating, then weigh your actual load — count the slabs and multiply by their weight. If it exceeds the rating, you are overloaded. Watch for beam sag, cracked welds, rust at the feet, and slabs sliding forward. In our 2026 audit, 30% of racks were overloaded without anyone noticing.
Does the floor limit a rack's capacity?
Yes — it is the most overlooked limit. A 30-ton rack on four small feet concentrates enormous pressure, so the slab or footing must carry the point loads. A rack is useless on a floor that cracks below its rating, so check floor bearing capacity before adding racks or increasing load.
How do I verify a supplier's capacity claim?
Demand a load test at 125% of rating with a measured deflection report, a weld inspection record, and a legible capacity plate showing the rating, date, and standard reference. A well-built rack stays under span/200 deflection and returns to zero when unloaded, proving it stayed elastic.
Verify the Capacity Before You Buy the Rack

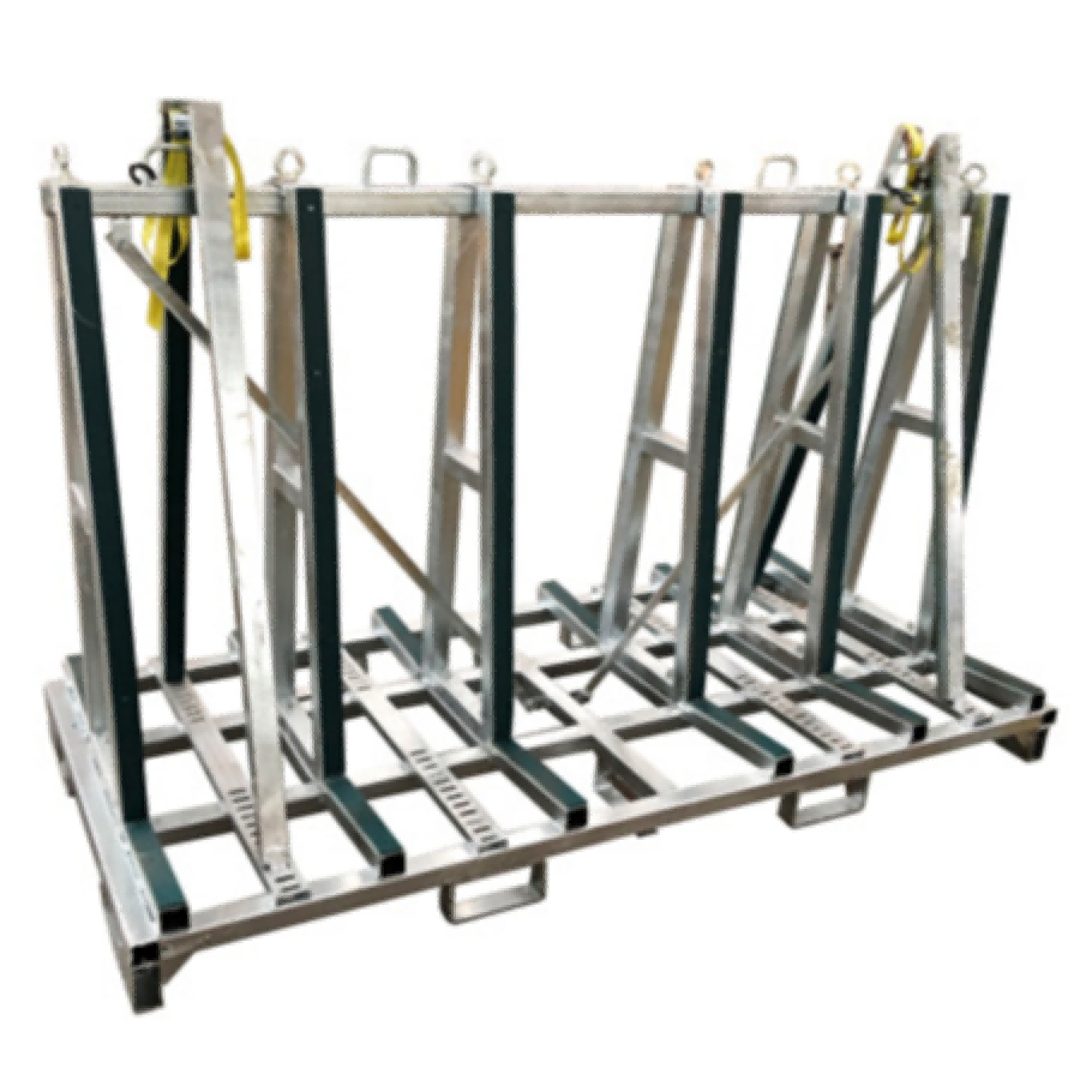

Xiigoo quotes every slab rack with a named standard, a stated safety factor, and a load-test report — because capacity you cannot verify is capacity you do not have. For standard-duty yards, start with the slab storage rack; for granite and engineered-stone loads, the heavy-type slab rack; and for transport-safe, strapped bundles, the steel slab storage racks with straps. Browse the full handling equipment lineup or send us your slab weights and floor plan — we will run the capacity and derating math with you before you spend a dollar.
