Granite Slab Rack vs Trestle: Which Storage Solution Is Better?

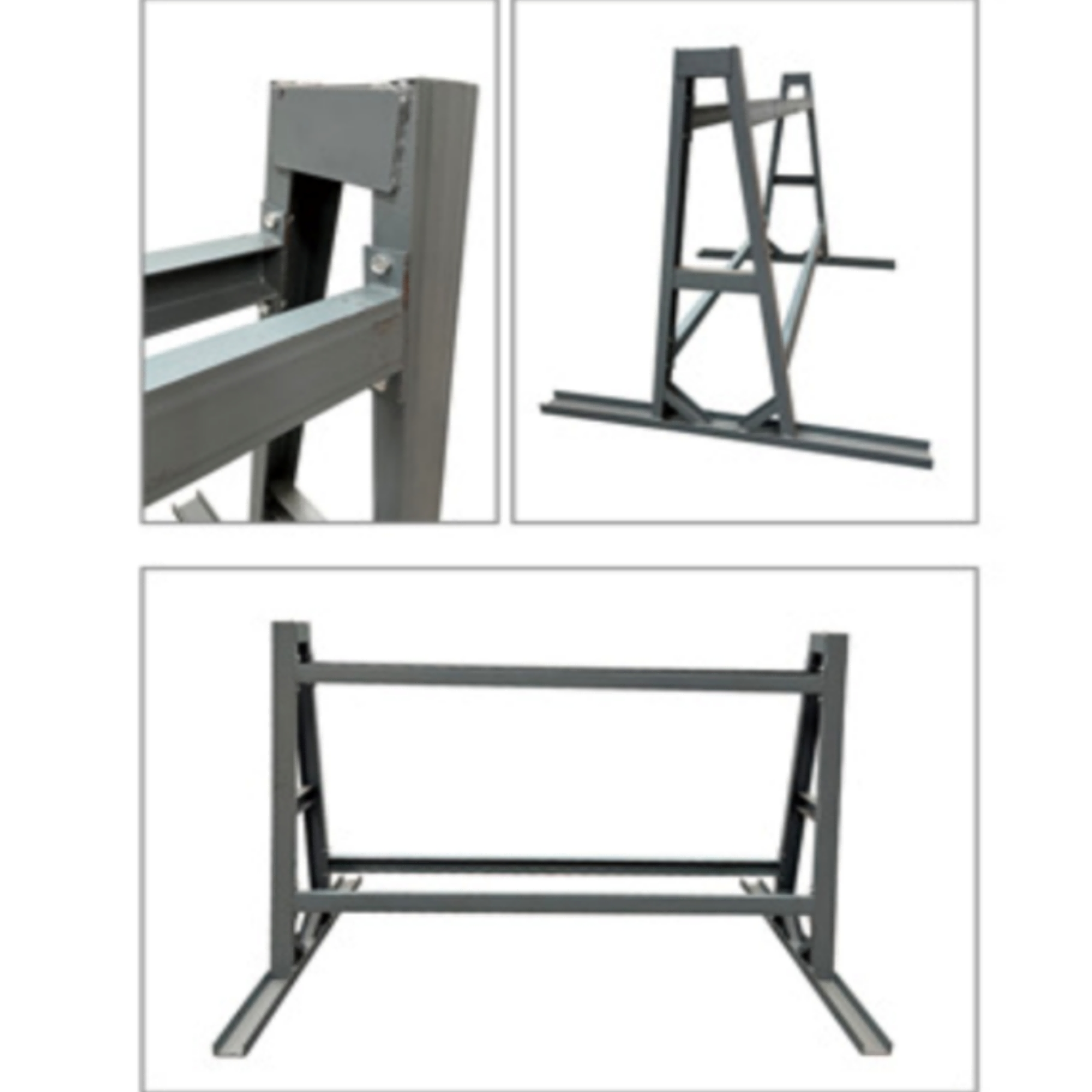

A slab trestle

A trestle is a stand — usually two matched stands used as a pair — that supports a leaning slab at discrete points. It can be a welded steel A-stand bought from a catalog, a sawhorse with a ledge, or lumber bolted together in the shop. Capacity typically runs 500–2,000 kg per pair for commercial steel versions, and shop-made wooden sets are usually well below that with no verified rating at all. There is no fixed lean geometry, no engineered load path, frequently no cushioning, and often no anchoring to the floor. A trestle is a point-support device that asks the slab to balance itself; a rack is an edge-support system that holds the slab. That distinction drives every result in the rest of this comparison.

The Safety Gap: Two Points vs. a Full Edge

Safety is where the granite slab rack vs trestle question stops being a preference debate, because the failure modes differ in kind, not just in degree.

The physics of a tipping slab

Take a standard 3 cm granite slab, 3.2 × 2.0 m, standing on its long edge: at 2,700 kg/m³ granite density it weighs about 518 kg. Now calculate what happens if it rotates past its balance point and falls. The center of gravity sits roughly 1.0 m above the floor when leaning; when the slab lands flat, that center of gravity has dropped nearly a meter. The released energy is approximately 518 kg × 9.81 m/s² × 0.98 m ≈ 5.0 kilojoules — comparable to being struck by a small car traveling at 10 km/h. No worker's reaction time, and no ordinary PPE, meaningfully changes that outcome. The calculation is simple mechanics, but it reframes the stakes: a leaning slab is stored energy, and the storage system is the containment.

Here is the mechanical difference. On a rack, the bottom edge is fully supported along its 3.2 m length, the backrest fixes the lean angle, and the base rail keeps the whole array from sliding — the slab cannot rotate past its balance point without deforming the frame. On a trestle pair, the slab contacts two narrow pads. The lean angle depends on how the operator set each piece, the floor's levelness, and how neighboring slabs lean into each other. A single shifted strap, a chipped pad, or a slab pulled out of the middle of a row changes the geometry of everything still standing. Because a trestle provides support points rather than support surfaces, the stability of a full trestle row degrades every time one slab is removed — the rack's does not.

What regulators and insurers say

This is not theoretical. Struck-by incidents involving stone slabs are a documented fatality pattern in fabrication shops and yards: the US Occupational Safety and Health Administration treats stored stone as a material-handling hazard under its material handling guidance and warehousing standards, and the Bureau of Labor Statistics injury data records the consequences year after year. The Natural Stone Institute publishes slab-handling safety guidance for exactly this reason. On the insurance side, underwriters increasingly ask how slabs are stored; an engineered, rated rack with strapped rows is an easy answer, while "the guys built stands from 2x4s" is a hard one. If a safety officer or insurance inspector signs off your storage, the rack wins this section by default.

Storage Density: What the Same Floor Holds

Safety is the argument that ends the debate; density is the argument that pays for the winner. A trestle row and a rack run do not use floor the same way, because a rack array is a designed layout while trestles scatter into whatever footprint the crew leaves.

Measured across fabrication shops we audit, trestle rows — including the access space a crew needs to walk between stands and maneuver slabs — average 1.5–1.8 slabs per square meter. Purpose-built rack layouts reach 2.4 slabs per square meter in single-sided configurations on a forklift aisle, and up to 4.7 slabs per square meter for double-sided units back-to-back on a narrow slab-cart aisle — the same benchmark range documented in our slab yard organization case study. In other words, the same floor holds 60–180% more stone once trestles are replaced by racks, because every rack face shares one aisle and one back clearance instead of demanding its own walking space.

Put it in absolute terms for a 120-slab inventory:

The cheapest square meters in any workshop are the ones you stop wasting on access space around improvised stands. The freed 21–45 m² can hold a second saw, a polishing station, or simply the next six months of inventory growth without signing a lease.

The Break-Even Calculator: Rack vs Trestle Storage Cost

Up to this point the rack has won on safety and density, and the trestle's remaining defense is price. So settle it with arithmetic. The model below compares cost per slab-year across three buckets: hardware (amortized over the storage period), floor space (area × monthly floor cost), and edge damage (a percentage of average slab value lost per year). Density constants come from the audit figures above; damage rates are 2.5% of slab value per year on trestles against 0.8% on cushioned racks, based on edge-chip claims in shops we support. Enter your own numbers — defaults reflect a typical 120-slab fabrication shop.

The break-even logic, in one sentence: trestles are cheaper per slab position, but racks are cheaper per slab-year, and every shop stores slabs for years. Run the sensitivity yourself: on a one-year horizon the rack needs floor cost above roughly $4.40/m²/month to win; on a three-year horizon it wins at essentially any floor cost, because the damage differential alone ($6.80 per slab-year) consumes the trestle's hardware advantage. Only when floor space is genuinely free (owned land, no alternative use) and damage is tolerated (rough blocks, not polished goods) does the trestle's price argument survive contact with arithmetic.

Slab Protection and Capacity Limits

The third axis is what each system does to the product itself, and to your ability to store heavier material at all.

Two practical consequences follow. First, capacity headroom: a rack section holds a designed quantity of 3 cm granite; a trestle pair holding "a few heavy slabs" is a load rating the crew estimates by eye. Second, edge condition: the edge chip that ruins a $600 polished slab for a visible-top job most often happens at the support point, and cushion strips exist precisely to prevent that contact geometry. Because chip damage scales with how often slabs are pulled and re-leant, high-turnover inventories amplify the trestle's damage rate, not dampen it. If your stock is mostly polished granite and quartz, this table is the quiet budget killer: at the illustrative damage rates above, a 120-slab shop loses on the order of $3,600 of product per year on trestles against $1,150 on racks.

Service Life and Maintenance

A welded steel rack is a 15-year asset in indoor service: galvanized or powder-coated structure, no moving parts, and the only consumable is the rubber cushion strip, replaced every few years at trivial cost. The maintenance routine is inspection-level — check anchor bolts, check straps, check cushion strips.

A trestle fleet ages the way improvised equipment ages. Wooden stands absorb water in wet-cutting areas, swell, split, and quietly lose bearing capacity. Field-welded steel stands fatigue at the welds, and because they were never rated to begin with, there is no inspection standard to catch the degradation — a wooden trestle does not fail loudly; it simply holds a little less each year, and nobody measures. Shops that stay on trestles typically rebuild some of them annually — an off-the-books cost the break-even model above excludes, so the trestle's true economics are somewhat worse than calculated.

When a Trestle Is the Right Answer

A fair comparison must say plainly where the trestle wins, because it does win somewhere. A trestle is a staging tool, not a storage system. Choose trestles when:

• Duration is measured in days, not months — job-site staging before an install, or a container unload awaiting rack placement.
• You are an installer, not a fabricator — a service shop holding 2–10 slabs that turn over weekly gets little benefit from fixed infrastructure.
• The material is rough or low-value — unpolished blocks and job remnants where edge chips carry no financial consequence.
• Overflow during a peak — temporary extra stands next to a permanent rack run, clearly labeled as staging, with the same strapping rules as above.

The trestle's portability and near-zero setup are genuine advantages — you cannot easily move a rack section to a customer's driveway. The professional pattern is not "racks instead of trestles" but racks for inventory, trestles for staging, and a bright line between the two. The failure mode to avoid is staging that quietly becomes storage: six temporary trestle stands holding polished granite for five months is the exact scenario every number in this article warns against.

The Verdict: A Five-Question Threshold Test

You do not need a weighted scorecard — five threshold questions produce the verdict. Answer them in order:

Three or more "rack" answers settle it: buy the rack. A shop that stores long, holds many slabs, or handles polished stone is already paying trestle prices — just in floor space, chip losses, and risk, instead of in a purchase order.

Migrating from Trestles to Racks Without Stopping Production

If the verdict above points you to racks, the last practical worry is the transition. A 100–150 slab shop can complete it in two to four weeks of partial-shift work, in four phases:

1. Map the floor (week 0). Draw the slab zones, measure the aisle you can dedicate, and count slabs by size and material — this determines single- vs. double-sided sections and where the run anchors.
2. Install the first run where trestles are densest (week 1). Anchor the rack sections, add cushion strips and straps, and load the highest-value polished stock first.
3. Transfer zone by zone (weeks 2–3). Move one trestle row at a time during low season; never empty two rows at once, and strap both the source row and the destination face during each transfer.
4. Repurpose, don't discard (week 4). Surviving trestles become labeled staging stands near the saw and the loading door — the role they were always right for. Scrap anything cracked, split, or fatigued.

Because each phase is independent, an interrupted migration degrades gracefully — you simply keep operating the boundary between the finished rack zone and the remaining trestle zone.

Frequently Asked Questions

Conclusion: The Threshold, Not the Tie

The granite slab rack vs trestle question has a threshold answer, not a tie. Below roughly six months of storage, twenty slabs, and rough material, a trestle is a legitimate staging tool. Above any of those lines, the purpose-built rack wins structurally — it holds the full slab edge instead of two points, it stores 60–180% more stone per square meter, it protects polished edges, it answers an insurance audit, and past the break-even point (about six months at typical industrial rents) it is simply the cheaper system per slab-year.
