5-Axis CNC Bridge Saw for Complex Stone Cutting Projects
A 5-axis CNC bridge saw is a computer-numerically-controlled Stone Cutting machine that moves a diamond blade along five independent axes simultaneously. Unlike conventional 3-axis or 4-axis machines, the 5-axis configuration allows the cutting head to tilt and rotate while the workpiece remains stationary, enabling bevel cuts, undercut profiles, and complex 3D geometries in a single setup. This type of machine is increasingly specified for architectural stone cladding, custom memorials, and engineered stone countertops where precision and repeatability are critical.
Key takeaways: 1) A 5-axis Cnc Bridge Saw enables simultaneous multi-angle cutting, eliminating manual repositioning. 2) It reduces setup time by up to 60% compared to 3-axis machines for complex profiles. 3) The technology supports granite, marble, quartz, and sintered stone with positioning accuracy within ±0.1 mm. 4) Selection should consider spindle power, travel range, and control system compatibility.
What Is a 5-Axis CNC Bridge Saw

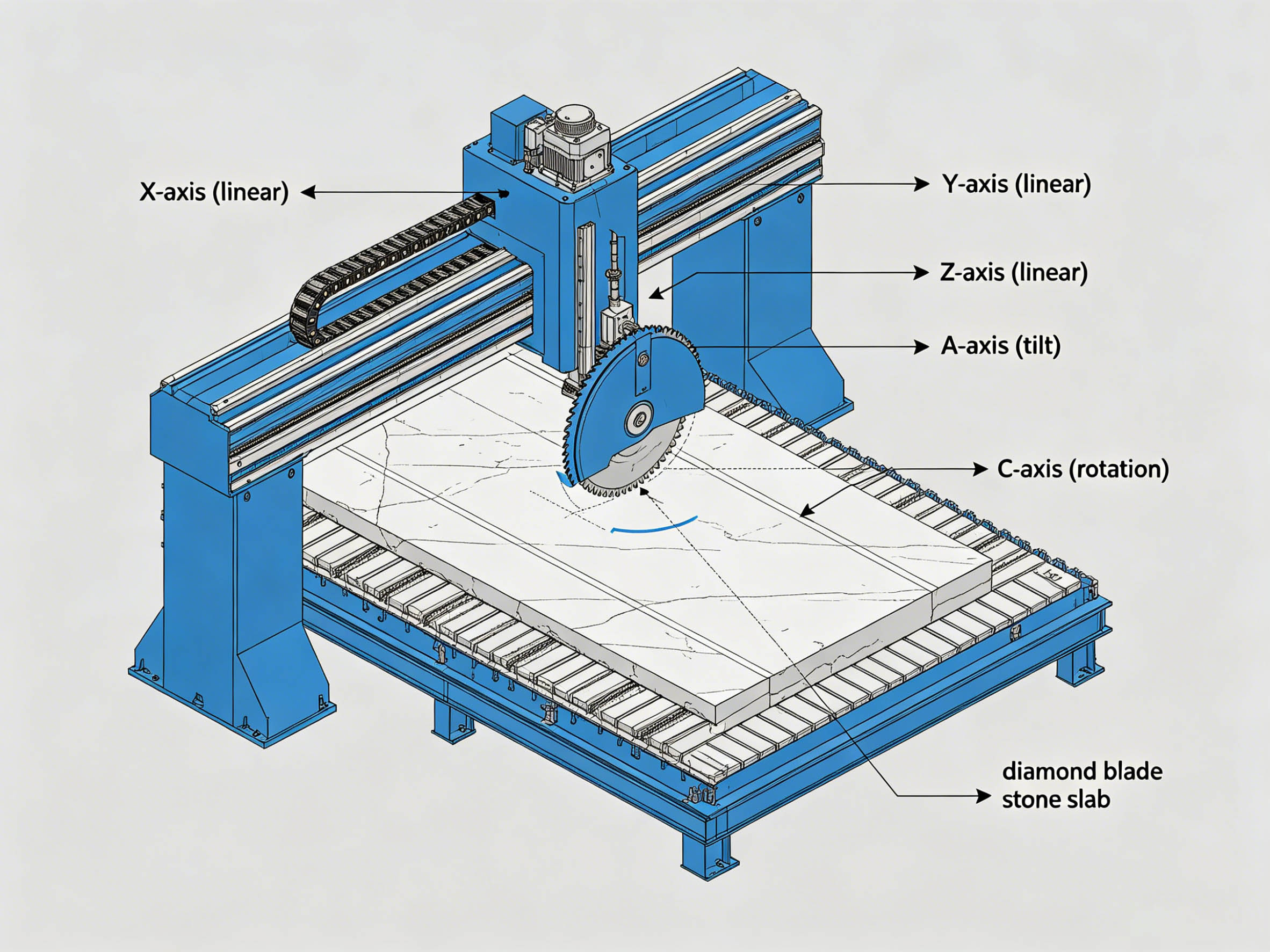

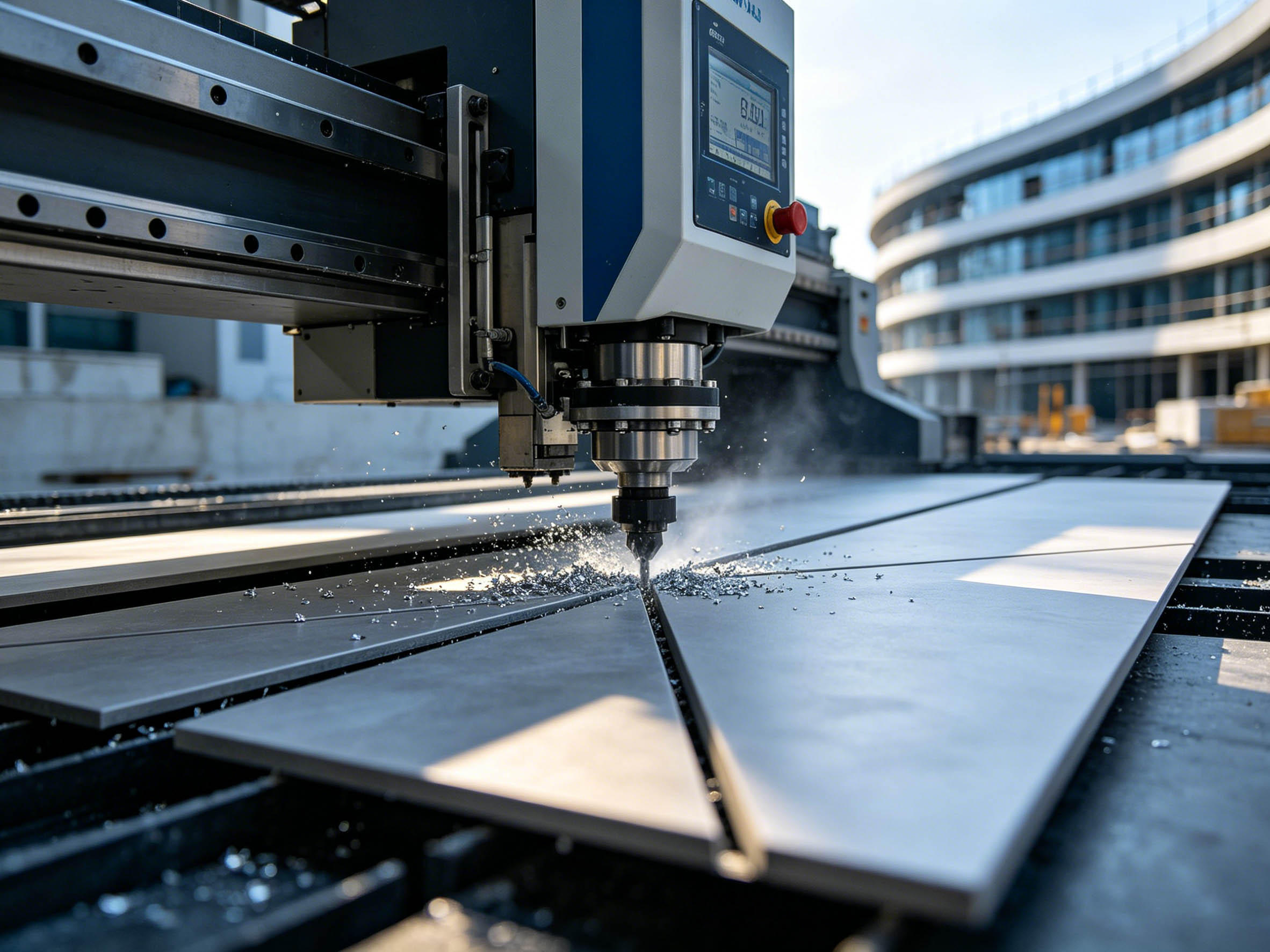

A 5-axis CNC bridge saw is a machining center designed specifically for stone fabrication. The term "5-axis" refers to the three linear axes (X, Y, Z) plus two rotational axes (typically A-axis for tilt and C-axis for rotation of the cutting head). This combination allows the diamond blade to approach the stone surface from any angle without moving the slab. The bridge structure provides rigidity across wide spans — typically 3 to 5 meters — making it suitable for large-format slabs up to 3.2 × 2.0 meters.
The control system interprets CAD/CAM toolpaths and converts them into coordinated motor movements. Servo drives on each axis provide closed-loop feedback, ensuring the blade follows the programmed path with repeatable accuracy. Industry data from the ISO 10791 series for machining centers indicates that positioning tolerances below 0.02 mm are achievable on rigid-frame CNC stone machines, though practical stone cutting tolerances of ±0.1 mm are more common due to material variations.
How It Differs From 3-Axis and 4-Axis Machines
A 3-axis bridge saw moves the blade in X, Y, and Z directions only, limiting cuts to flat planes and straight vertical edges. Complex shapes require manual repositioning or secondary operations. A 4-axis machine adds rotation of the worktable or cutting head in one plane, enabling certain angle cuts but still restricting undercut geometries. The 5-axis configuration provides full freedom of the cutting tool orientation, allowing the blade to maintain optimal tangential contact with the stone surface throughout curved and angled cuts. This reduces tool wear and improves edge finish quality.
Key Technical Specifications of 5-Axis CNC Bridge Saws
The performance envelope of a 5-axis CNC bridge saw is determined by several interrelated parameters. The table below compares typical specifications across 3-axis, 4-axis, and 5-axis configurations.
| Parameter | 3-Axis Bridge Saw | 4-Axis Bridge Saw | 5-Axis CNC Bridge Saw |
|---|---|---|---|
| Motion axes | X, Y, Z | X, Y, Z + rotary table or head (1 axis) | X, Y, Z + tilt (A) + rotation (C) |
| Max positioning accuracy | ±0.3 mm | ±0.2 mm | ±0.1 mm |
| Cutting head tilt range | Fixed (0°) | 0°–45° (limited axis) | 0°–90° (continuous) |
| Typical spindle power | 11–15 kW | 11–18 kW | 15–22 kW |
| Setup time for complex profiles | Baseline (100%) | ~70% of 3-axis | ~40% of 3-axis |
| Typical application | Straight cuts, slabs | Bevels, miter cuts | 3D contours, undercuts, sculpting |
Applications in Complex Stone Cutting Projects
Five-axis CNC bridge saws are used in projects where geometric complexity and dimensional accuracy are equally important. Typical use cases include:
- Architectural cladding panels — Curved building facades require stone panels with compound-angle edges that fit precisely within a steel framework. A 5-axis machine cuts all mating edges in one program cycle.
- Custom countertops with integrated sinks — Undermount sink cutouts with profiled edges, drainboard grooves, and back-splash contours are machined from a single slab without repositioning.
- Memorial and monument lettering — Deep-relief carving, 3D text, and ornamental details on granite monuments require simultaneous axis movement to maintain consistent cut depth across uneven surfaces.
- Staircase treads and risers — Stone stair components with nosing profiles, mitered returns, and landing transitions benefit from the repeatability of multi-axis programming.
- Restoration and replication — Historical stone elements scanned with 3D digitizers can be reproduced on a 5-axis CNC bridge saw using reverse-engineered toolpaths.
According to the U.S. Geological Survey Mineral Commodity Summaries, the dimension stone industry has seen a compound annual growth rate of approximately 4.2% in fabricated stone products since 2020, driven largely by automated fabrication technologies. The Occupational Safety and Health Administration (OSHA) also recognizes automated bridge saws as reducing operator exposure to airborne silica during manual cutting operations.
5-Axis CNC Bridge Saw vs Other Stone Cutting Technologies
When specifying stone cutting equipment, fabricators compare 5-axis bridge saws with waterjet cutters and CNC routers. The table below outlines distinctions relevant to stone cutting applications.
| Criterion | 5-Axis CNC Bridge Saw | Waterjet Cutter | CNC Stone Router |
|---|---|---|---|
| Cutting speed (granite 20 mm) | 800–1200 mm/min | 150–300 mm/min | 400–700 mm/min |
| Edge finish quality | Good (semi-polished) | Matte (requires finishing) | Good (with appropriate bit) |
| Maximum slab thickness | Up to 200 mm | Up to 150 mm (typical) | Up to 80 mm |
| Operating cost per part | Low–medium | High (abrasive + water) | Low–medium |
| 3D contour capability | Full | Limited (2D piercing) | Full |
| Dust management | Water-cooled (wet cut) | Wet process (slurry) | Dry vacuum or mist |
Data on cutting speeds and operating costs are based on published values from the Natural Stone Institute fabrication guidelines and manufacturer specification sheets. The 5-axis bridge saw offers the best balance of throughput, edge quality, and material thickness range for mainstream stone fabrication operations.
How to Select a 5-Axis CNC Bridge Saw
Choosing the right 5-axis CNC bridge saw depends on production volume, material types, and part complexity. Key selection parameters include:
- Spindle power and speed — A 15–22 kW spindle with variable speed (1000–6000 RPM) is recommended for granite and quartzite. Lower power may suffice for marble and limestone.
- Travel range — The X-axis (bridge travel) and Y-axis (cross-travel) must accommodate the largest slab size processed. Common specifications are 3200 mm (X), 2000 mm (Y), and 400 mm (Z).
- Control system compatibility — The CNC controller should accept standard G-code and interface with common CAD/CAM platforms such as Alphacam, Mastercam, or Artcam.
- Coolant and dust extraction — Integrated water-cooling for the blade and mist-collection systems reduce slurry accumulation and comply with airborne particulate regulations.
- Table configuration — Fixed, rotating, or tilting worktables affect workflow. A tilting table simplifies slab loading but adds cost and maintenance complexity.
The ASTM C615 standard for granite dimension stone provides material property references that inform spindle torque requirements. Fabricators processing hard granite (compressive strength > 180 MPa) should prioritize machines with rigid gantry construction and linear guide rails rather than dovetail slides.
Maintenance Practices for 5-Axis CNC Bridge Saws
Regular maintenance directly affects axis accuracy and machine lifespan. Critical practices include:

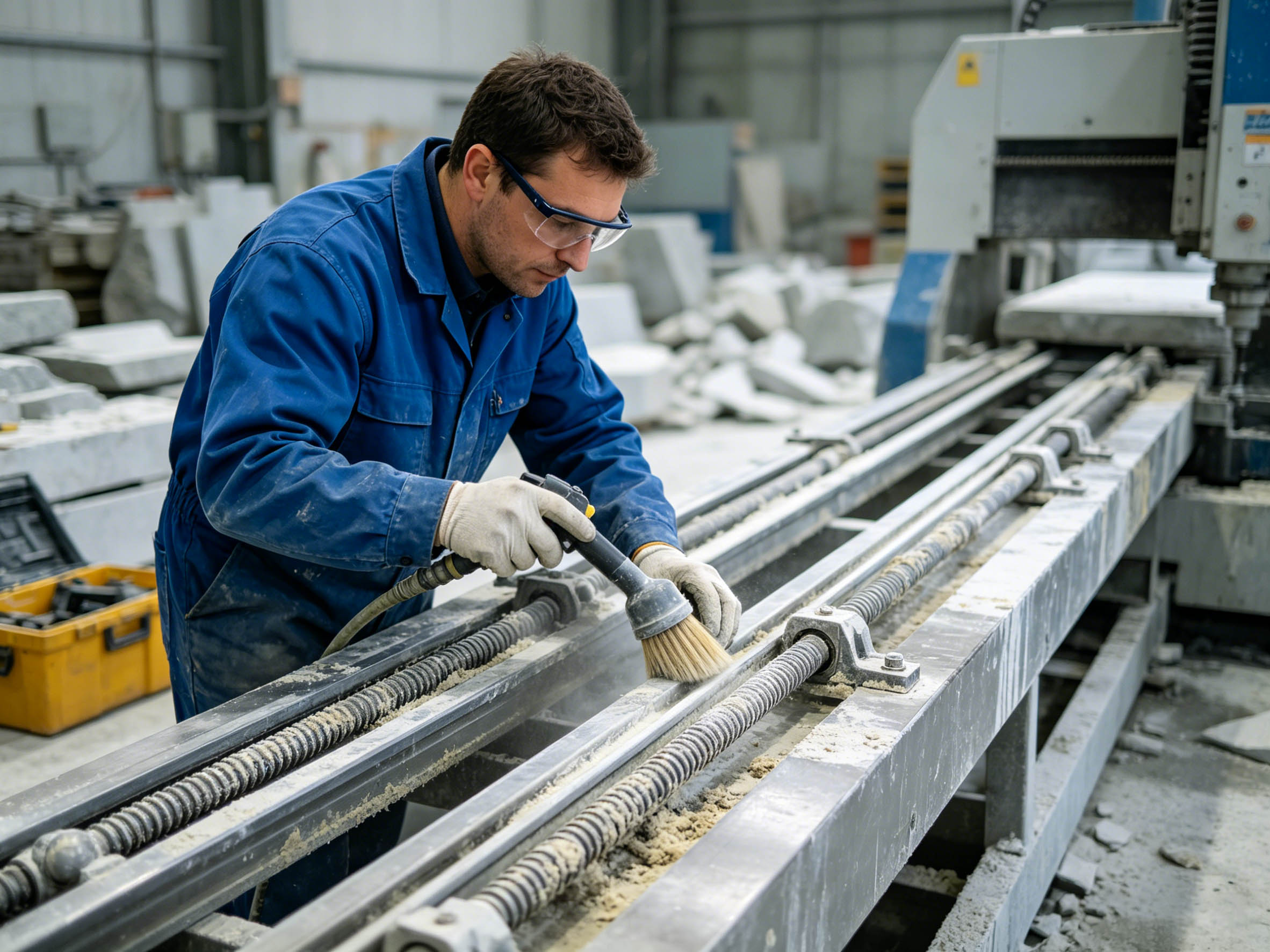

- Daily: Clean linear guide rails and ball screws of stone sludge. Verify coolant flow to the blade contact zone.
- Weekly: Inspect V-belt tension and replace worn belts. Check hydraulic fluid levels in table tilt mechanisms.
- Monthly: Lubricate all axis bearing blocks and ball nuts with manufacturer-recommended grease. Calibrate tool-length offsets.
- Quarterly: Measure axis backlash using a dial indicator. Re-tram the cutting head to ensure perpendicularity to the table surface.
The Canadian Standards Association (CSA) guidelines for industrial machinery maintenance recommend documented preventive schedules to reduce downtime by up to 35% in fabrication environments. A digital log of calibration checks also supports ISO 9001 quality management systems.
Frequently Asked Questions
A 5-axis CNC bridge saw uses a diamond-tipped circular blade and is optimized for cutting slabs of natural and engineered stone. A 5-axis CNC router uses small-diameter bits for carving, profiling, and edge detailing. Bridge saws support higher feed rates for straight cuts, while routers offer greater detail resolution for complex 3D surfaces.
Yes, when equipped with a segmented diamond blade designed for engineered stone and appropriate feed rates (typically 600–900 mm/min for 30 mm quartz). The multi-axis control maintains consistent blade engagement angle, reducing edge chipping. A water-cooled cut further minimizes thermal stress on the resin binders in quartz slabs.
A minimum of 15 kW spindle power is recommended for cutting granite slabs up to 30 mm thickness. For thicker material or high-throughput production, 18–22 kW provides better torque reserve at lower RPM. Spindles with ceramic bearings offer longer service life in the abrasive stone-cutting environment.
Programming time depends on part complexity and operator skill. A typical kitchen island with an undermount sink cutout and profiled edge can be programmed in 20–40 minutes using CAD/CAM software. Repeated parts benefit from stored toolpath templates, reducing programming to under 10 minutes per variant.
Most 5-axis bridge saws require 380–480 V, three-phase power with a minimum 30 A circuit. Some smaller models operate on 220 V single-phase with a phase converter. Consulting a licensed electrician to verify load capacity and grounding is recommended before installation, particularly for machines with servo drives rated above 15 kW.
Summary
5-axis CNC bridge saws represent a significant advancement in stone fabrication technology, enabling complex geometries that were previously achievable only through manual processes or multiple machine setups. Key conclusions include: 1) The five-axis configuration eliminates intermediate handling, improving both accuracy and throughput. 2) Spindle power, travel range, and control system compatibility are the primary selection criteria. 3) Regular axis calibration and coolant management extend machine life and maintain precision. For stone fabricators processing high-value architectural or custom residential work, a 5-axis CNC bridge saw offers measurable productivity gains and expanded design capability compared to conventional 3-axis or 4-axis equipment.
