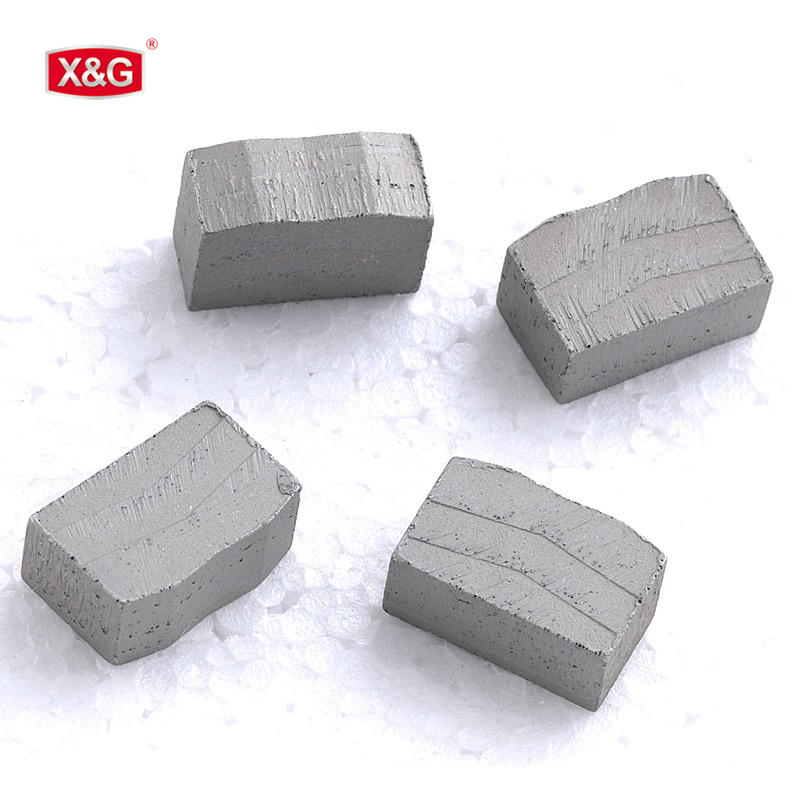

Multi Blade And Segment for Efficient Stone Cutting
product introduction

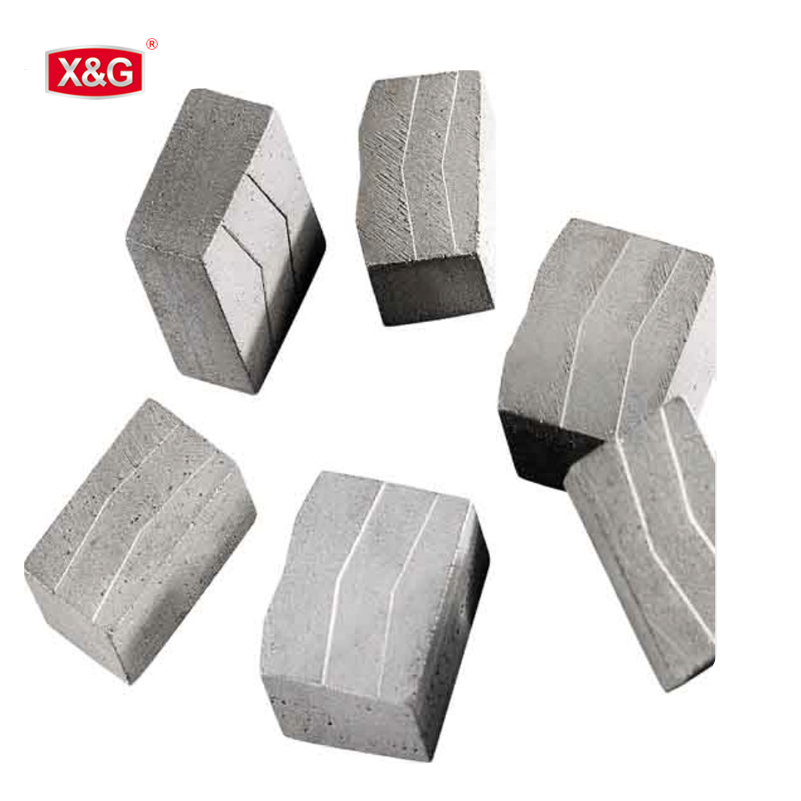

Xingong's Multi Blade and Segment are designed for efficient and precise cutting of various types of stone. These blades are engineered to operate with low noise, provide a small cutting slot for maximum stone utilization, and ensure uniform thickness.
product advantage
• Low Noise Operation: Designed to work with reduced noise levels, making them ideal for use in environments where noise reduction is crucial.
• Maximum Stone Utilization: The small cutting slot ensures maximum use of the stone, minimizing waste and optimizing material usage.
• Uniform Thickness: Delivers consistent cutting results with uniform thickness, ensuring high-quality finished products.
• Stable Cutting: Provides stable cutting performance with a narrow cutting gap, further reducing stone waste.
technical data
| Diameter(mm) | Steel core(mm) | Head size(mm) | Segment Number | Shape | Application |
| 1000 | 5.0 | 24×7.0/6.2×13(15,20) | 70 | Z3T/Z3T-M (conical) | Marble |
| 1200 | 5.5 | 24×7.4/6.6×13(15,20) | 80 | Z3T/Z3T-M (conical) | Marble |
| 1400 | 6.5 | 24×8.4/7.6×13(15,20) | 92 | Z3T/Z3T-M (conical) | Marble |
| 1600 | 7.2 | 24×9.2/8.4×13(15,20) | 108 | Z3T/Z3T-M (conical) | Marble |
PACKAGING & SHIPPING
• For urgent orders with lighter weight or samples, we recommend using express delivery.
• For regular orders weighing over 45kgs, air cargo is recommended.
• For large diameter saw blades or heavy items, shipping by sea is recommended.
Xingong will provide recommendations based on the specific requirements of each order.
