Infrared Bridge Cutting Machine
product video
product introduction

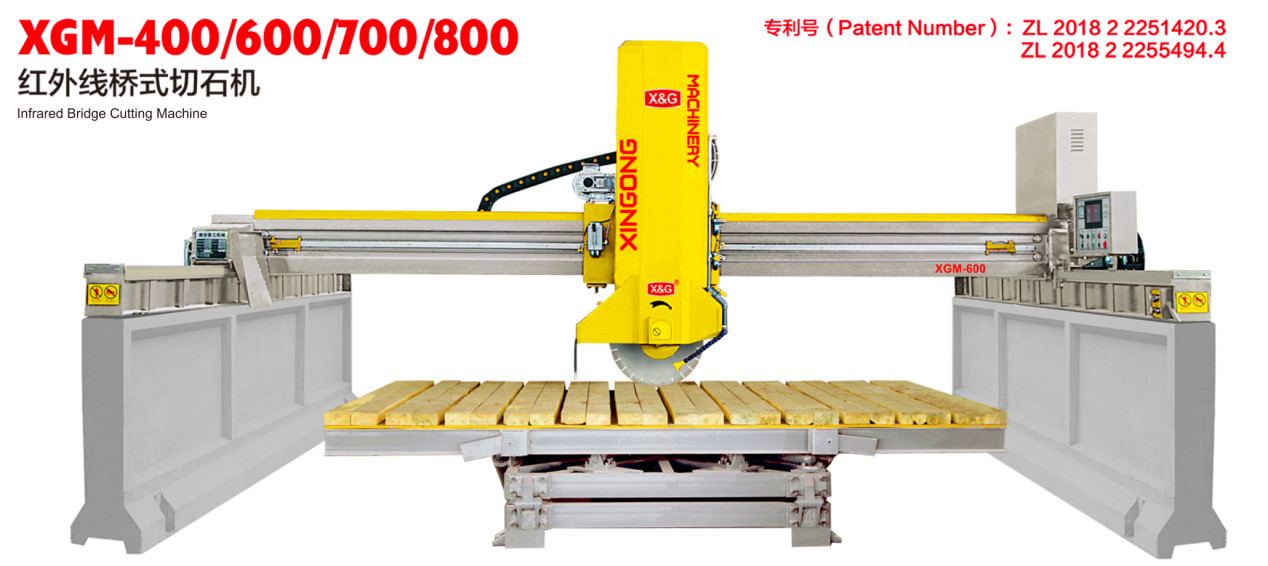

Xingong Infrared Bridge Cutting Machine is PLC Controlled System. The matching worktable can be rotated 90 or 360 degrees in the horizontal plane (45 degrees one positioning), and 85 degrees flip. Precise manufacturing and assembly, unique side beam protection device, and touch-type operating system make it have the characteristics of high precision, high stability, high efficiency, and convenient operation. This machine is especially suitable for processing high-value and large-size granite slabs and marble slabs.
product advantage
• High Precision: PLC-controlled for accurate cutting.
• High Stability: Unique side beam protection and stable operation.
• High Efficiency: 360° rotation and 85° flip for efficient processing.
• Convenient Operation: Easy-to-use touch-type operating system.
• Wide Applicability: Ideal for large granite and marble slabs.
technical data
| Model | XGM-400 | XGM-600 | XGM-700 | XGM-800 | Unit |
| Max. processing size(L xWxH) | 3200x 2000x 70 | 3200x 2000x 180 | 3200x 2000x 230 | 3200x 2000x 280 | mm |
| Diameter of blade | ∅350-∅400 |
∅400-∅600 | ∅400-∅700 | ∅400--∅800 | mm |
| Dimensions of worktable(L xW) 3200x 2000 | 3200 x 2000 | 3200 x 2000 | 3200 x 2000 | 3200 x 2000 | mm |
| Worktable titing degree | 0-85 | 0-85 | 0-85 | 0-85 | n° |
| Worktable rotating degree | 0-90/0-360 | 0-90/0-360 | 0-90/0-360 | 0-90/0-360 | n° |
| Main motor power | 15 | 18.5 | 22 | 22 | kw |
Water consumption |
3 | 3 | 3 | 3 | m3/h |
| Overall dimensions(LxWxH) | 6000 x 5000x 3000 | 6000 x 5000x 3000 | 6000 x 5000x 3000 | 6000 x 5000x 3000 | mm |
| Weight | 5700(ncuding stand 10T) | 5800(ncuding stand 10.2T) | 5900(ncuding stand 10.4T) | 5900(ncuding stand 10.4T) | kg |
