Heavy - duty Slab Transfer Vehicle
product introduction

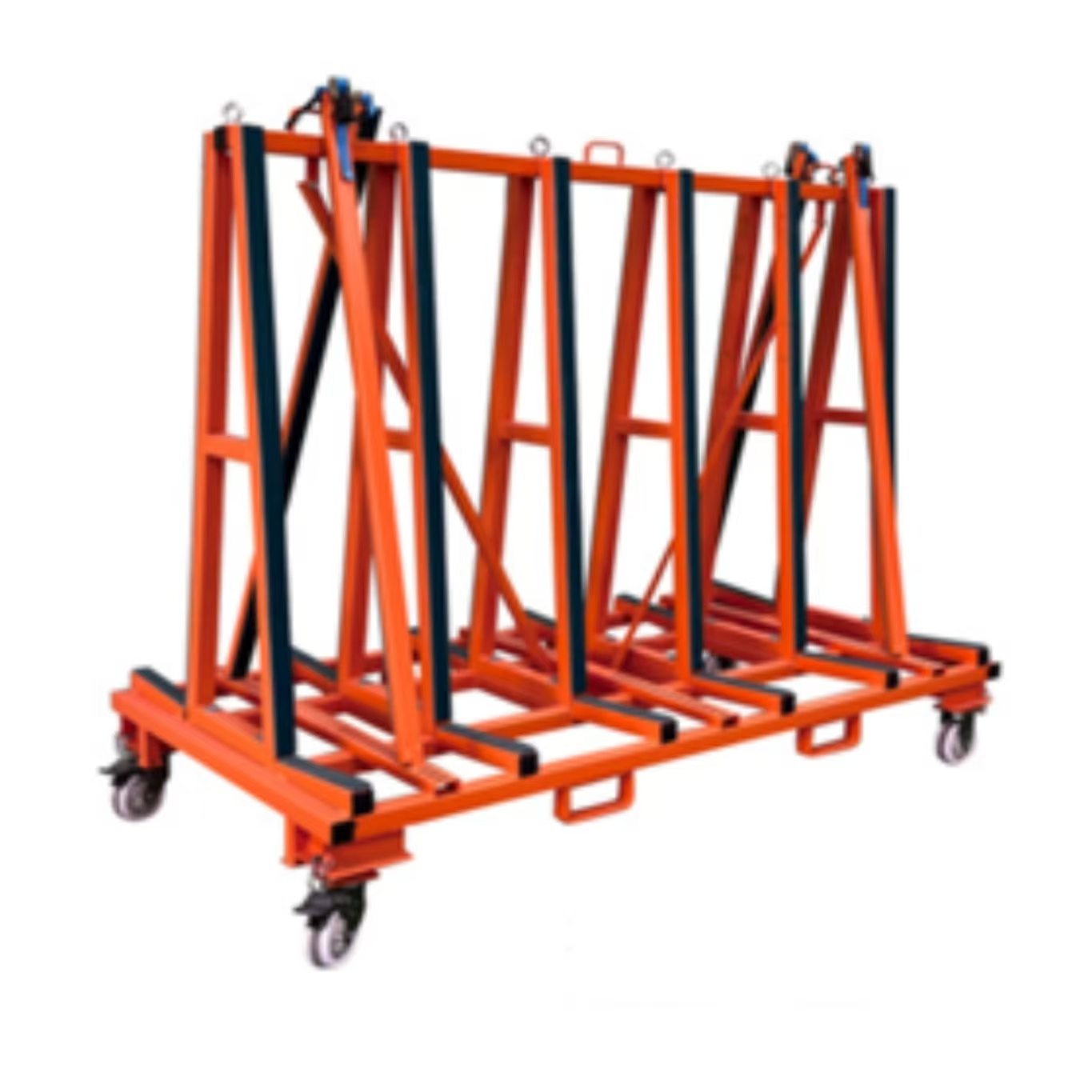

The Heavy - duty Slab Transfer Vehicle is a specialized industrial equipment designed for the safe and efficient handling of slabs. It features a robust orange - painted metal frame with multiple vertical supports to securely hold slabs in place. The vehicle is equipped with heavy - duty wheels, enabling smooth mobility within factories, warehouses, or construction sites. This makes it an ideal solution for transporting and storing slabs, enhancing operational flexibility and productivity.
product advantage
• Mobility: Equipped with heavy - duty wheels, it offers easy maneuverability, allowing for seamless transportation of slabs across industrial sites, reducing the need for manual handling and enhancing efficiency.
• Sturdy Construction: Built with a robust metal frame in an eye - catching orange color, it has a high load - bearing capacity, ensuring it can securely hold heavy slabs without deformation or structural failure.
• Secure Storage: The multiple vertical supports and bracing provide a stable and secure storage solution for slabs, preventing movement and minimizing the risk of damage during transit and storage.
• Durability: The vehicle's metal construction and protective finish offer excellent resistance to wear, corrosion, and impacts, ensuring a long service life even in harsh industrial environments.
• Versatility: Suitable for a wide range of slab materials and sizes, it can be used in various industries such as construction, manufacturing, and stone processing, providing a flexible storage and transfer solution.
technical data
| MODEL | DIMENSIONS (LxWxH) | PACK SIZE(LxWxH) | SLAB PLACED WIDTH | SLAB PLACED HEIGHT | LOAD CAPACITY
(No Moving)
|
LOAD CAPACITY
(Moving)
|
WHEEL SIZE | NET WEIGHT |
| XGM-STC2A | 1500x1100x1500mm | 1500x1100x300mm | 340mm Each Side | 1150mm | 3T | 1.8T | 6 Inches | 145Kg |
| XGM-STC2B | 2000x1100x1800mm | 2000x1100x300mm | 315mm Each Side | 1450mm | 3T | 2T | 6 Inches | 160Kg |
| XGM-STC2C | 1500x1100x1500mm | 1500x1100x400mm | 340mm Each Side | 1150mm | 2.5T | 2T | 6 Inches | 140Kg |
| XGM-STC2D | 1500x1100x1800mm | 1500x1100x400mm | 315mm Each Side | 1450mm | 2.5T | 2T | 6 Inches | 155Kg |
| XGM-STC2E | 2200x1100x1500mm | 2200x1100x300mm | 340mm Each Side | 1150mm | 2.7T | 2T | 6 Inches | 185Kg |
| XGM-STC2F | 2200x1100x1800mm | 2200x1100x400mm | 315mm Each Side | 1450mm | 2.7T | 2T | 6 Inches | 200Kg |

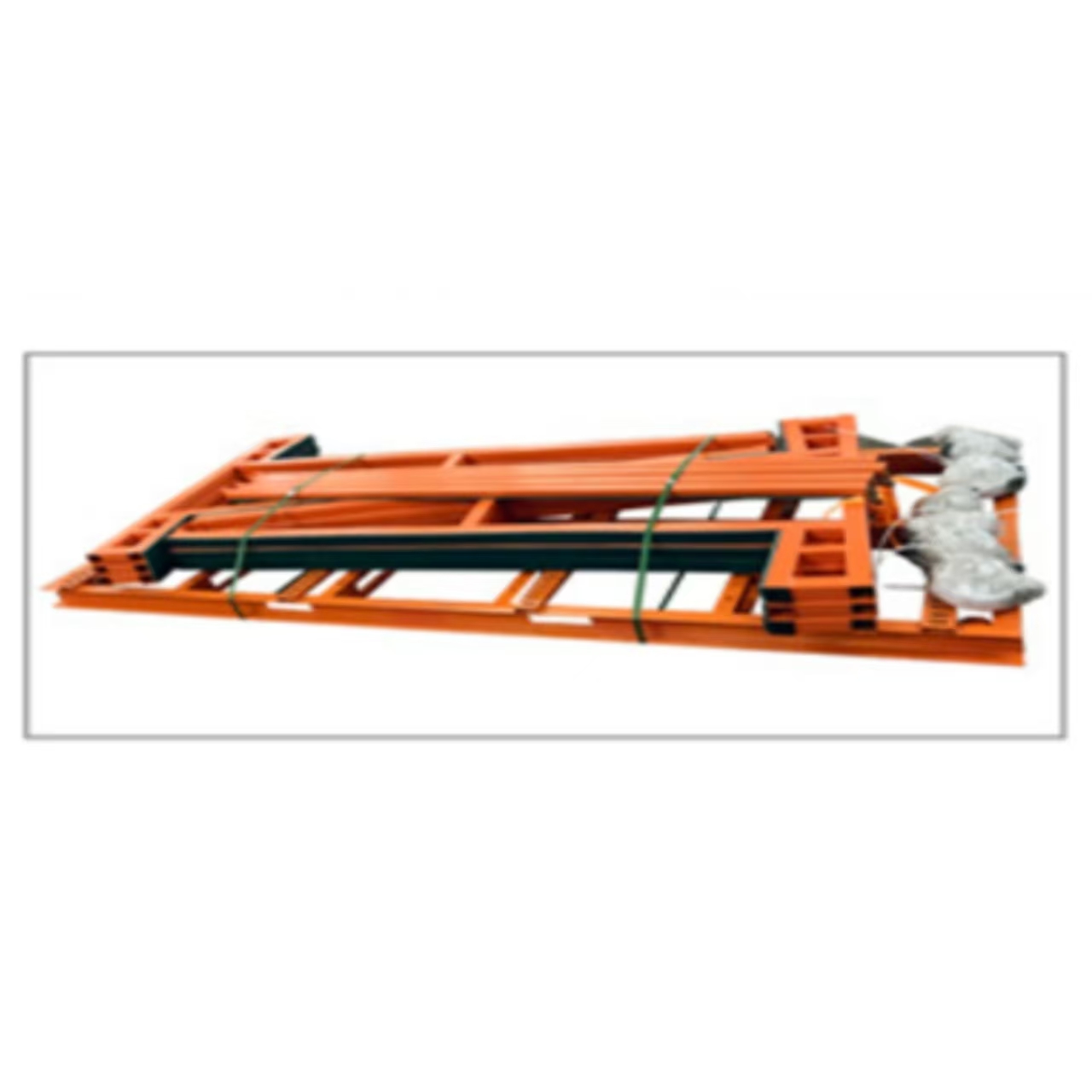

PACKAGING & SHIPPING
• For urgent orders with lighter weight or samples, we recommend using express delivery.
• For regular orders weighing over 45kgs, air cargo is recommended.
• For large diameter saw blades or heavy items, shipping by sea is recommended.
Xingong will provide recommendations based on the specific requirements of each order.
