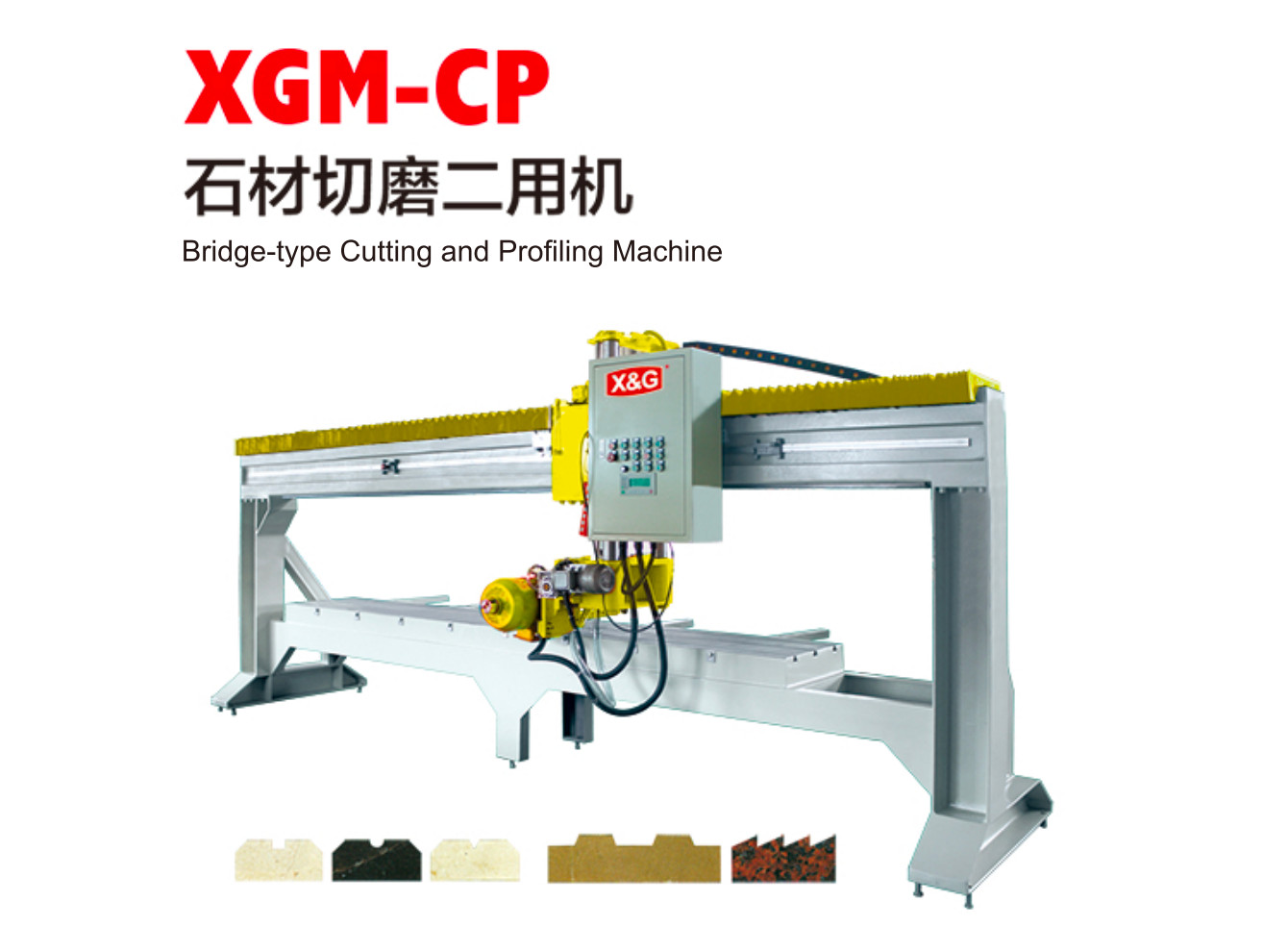

Bridge-type Cutting and Pofiling Machine
product video
product introduction
Xingong Bridge-type Stone Cutting and Grinding Machine is a high-precision, multi-functional special-shaped stone processing machine. This machine is capable of processing all kinds of straight edges. With its movable joint function, it can also process various inside and outside curve laces. By adding a turntable, it can process disk tables, and by changing the saw blade, it can perform cutting operations. It is a versatile piece of equipment that combines straight cutting, grinding, and curve cutting grinding functions.
product advantage
• High Precision: Ensures accurate processing for both straight and curved edges.
• Multi-functional: Capable of straight cutting, grinding, and curve cutting, offering versatility in stone processing.
• Movable Joint Function: Allows for the processing of various inside and outside curve laces.
• Turntable Addition: Enables the processing of disk tables, enhancing the machine's functionality.
• Easy Saw Blade Change: Facilitates quick transitions between cutting and grinding operations.
technical data
| Model | XGM-CP |
| Overall Dimension | 4400x 1400x 2100 mm |
| Dimension Of Working Table | 3000 x 1000 mm |
| Power Supply | 6.42 KW |
| Main Motor Power | 5.5 KW |
| Travel Motor Power | 0.55 KW |
| Fluctuating Motor Power | 0.37 KW |
| Traveling Speed | 0.25-4.5 M/min |
| Motor Head Angle | Random |
| Motor Head Adjust Angle | ±10° |
| Back and Forth Stop Set | Random |
| Grinding Curved Line | Inside outside curved Random |
| Grinding Head Rotation Speed | 1440 / 2880 r/min |
| Power | 50Hz~ 380V |
