Battery Transfer Cart
product video
product introduction

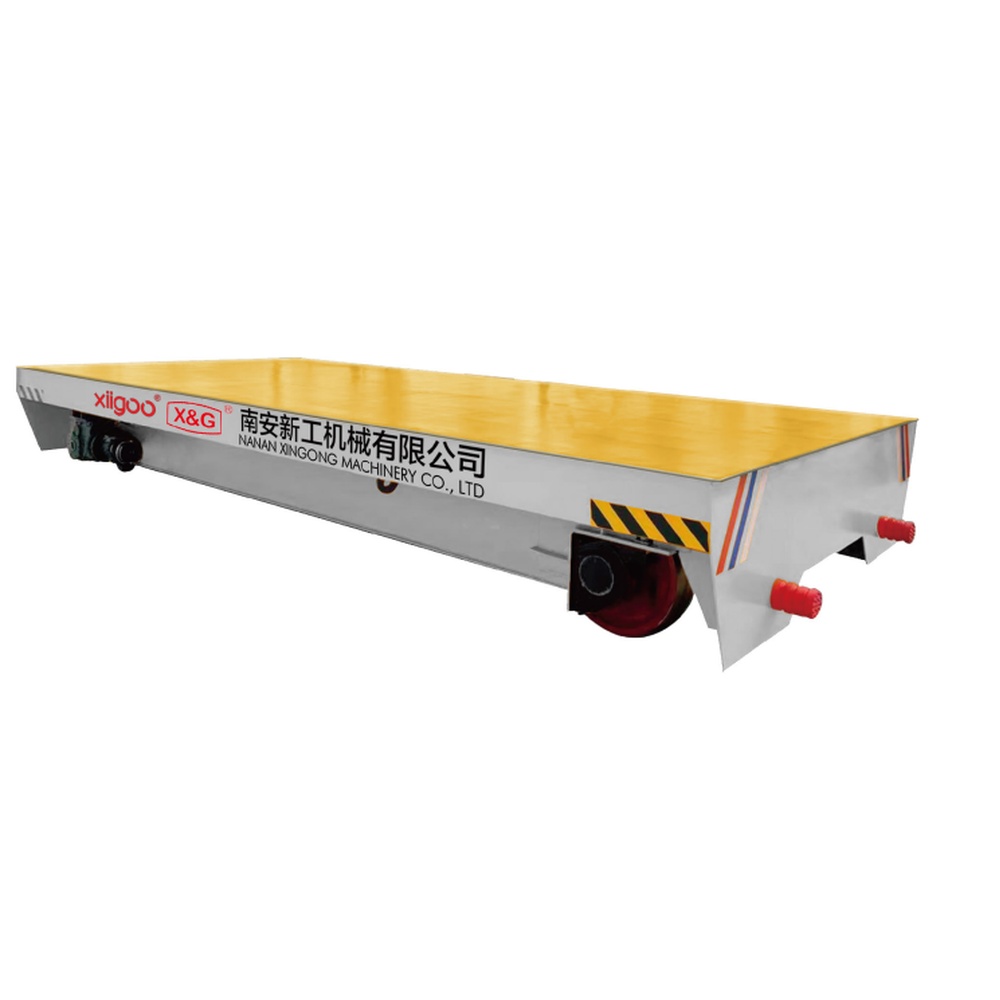

The Battery Transfer Cart by X&G Machinery is a robust, remote-controlled electric transport vehicle built to handle heavy loads up to 20,000 kg. Designed for stone, glass, and ceramic industries, it features a stable platform, safe remote operation, and a long-lasting battery system (over 1000 charge cycles, <8h charge time, >8h working time). Ideal for efficient, secure movement of large, fragile slabs in industrial environments.
product advantage
•Heavy-Load Capacity: Boasts a rated loading weight of 20,000 kg, making it ideal for the most demanding heavy-duty material transport tasks.
•Optimized Dimensions: Compact overall dimensions of 3000 × 2000 × 1720 mm with a specialized table size of 3000 × 2000 × 720 mm, designed to securely cradle oversized slab while maintaining maneuverability.
• Safe Remote Operation: Equipped with full remote control functionality, allowing operators to manage the vehicle from a safe distance and minimizing risks associated with handling heavy, fragile loads.
• Stable Mobility: A travel speed of 20 m/min and robust 400 mm diameter wheels ensure smooth, stable movement across factory floors, even under maximum load.
• Reliable Power System: Powered by 48V/240Ah Lead-acid Battery, delivering a battery lifespan of over 1000 charge cycles, a fast charging time of less than 8 hours, and continuous working hours of more than 8 hours on a full charge.
technical data
| Category | XGM-BDC20T | XGM-BDC30T |
| Max impact load | 20 tons | 30 tons |
| Table Dimension | 2900 X 2000 X 720mm | 2900X2000 X900 mm |
| Steering Type | Hydraulic steering | Hydraulic steering |
| Travel Motor Power | 3KW X2units | 4.5KW X2units |
| Travel Speed | 0-20 m/min | 0-20 m/min |
| Braking Distance | ≤1000mm (normal), ≤300 mm (emergency) |
≤1000 mm (normal), ≤300 mm(emergency) |
| Wheel Diameter Wheel Material |
450 mm Rubber Wheel |
560 mm Rubber Wheel |
| Battery Pack | 48V/240Ah Lead-acid Battery | 48V/320Ah Lead-acid Battery |
| Battery Life | ≥1000cycles | >1000cycles |
| Operating Days per `Charge | 7-10 days per Charge | 8-12 days per Charge |
| Safety System | Audible & visual alarm | Audible & visual alarm |
| Safety System | Stop when encountering obstacles | Stop when encountering obstacles |
| Vehicle Color | Square Frame Rack, A-Frame Rack or Customized | Square Frame Rack, A-Frame Rack or Customized |
